Chemical Water Pump Manufacturer From China of Sea Pumps
- Chongqing
You May Like
-
Submersible dc Vacuum Chemical Pump up China Industrial Limited Bolt and Nut
-
Made in China Chemical Pump of Yellow or Black Water Pump
-
Sea Water Pump, High Head Chemical Agricultural Pump
-
Made in China Chemical Pump of Acid System Pump
-
Electric Contactor,centrifugal Pump,horizontal Multistage Pump
-
Engine or Motor Driven Portable Chemical Pump
Product Details
| Place of Origin | Chongqing, China | Brand Name | JUANYONG | |
| Model Number | FTB50 | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Hydraulic | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | Low Pressure | |
| Application | Maritime |
Product Description
ITEM | FTB50 |
Outlet Size(mm) | 50 |
Inlet Size(mm) | 50 |
Speed(rpm) | 3600 |

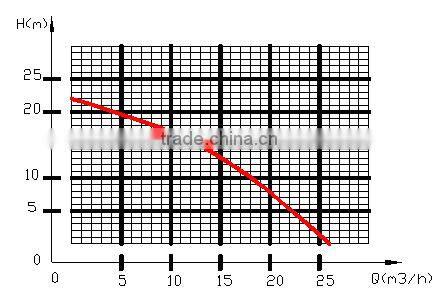

Displacement Q.max(m3/h) | 25 |
Lift H.max(m) | 22 |
Suction(m) | 7 |
Engine Model | 168F |

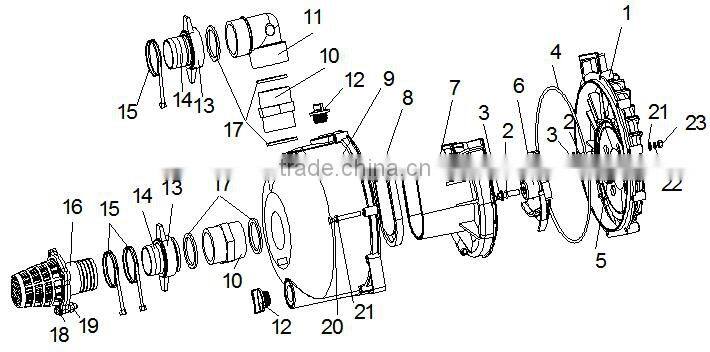

Serial number | Name | Number |
1 | Water pump cover | 1 |
2 | Rubber ring φ12×φ6×3.1 | 4 |
3 | Bolt M8×35 | 4 |
4 | Pump sealing ring | 1 |
5 | Mechanical seal / ceramic | 1 |
6 | Impeller | 1 |
7 | Eddy shell | 1 |
8 | Eddy shell sealing ring | 1 |
9 | Water pump body | 1 |
10 | Inlet joint | 2 |
11 | The water outlet joint | 1 |
12 | Threaded plug pump | 2 |
13 | Pipe joint connecting nut | 2 |
14 | Pipe joint | 2 |
15 | Clamp | 3 |
16 | Filter cover | 1 |
17 | Pipe joint sealing gasket | 2 |
18 | Bolt M6×20 | 2 |
19 | Nut M6 | 2 |
20 | Bolt M6×65 | 10 |
21 | Shim | 20 |
22 | Spring pad | 10 |
23 | Nut M6 | 10 |
Business type:manufacturer,trading company.
Location:chongqing,china(mainland).
Year established:2010.
Company certifications:
Main products:chemical pumps,sewage pumps,self priming drag pumps,self priming high lift pumps,self priming pumps.
Our philosophy is to provide our clients with a wide choice of quality products and unprecedented services,we assure our clients of a mutually beneficial relationship as we look forward to developing a long term strategic partnership with your esteemed organization.
Customers to visit our factory
Delivery time:10-15days after initial payment.
Sampe by express, like UPS,TNT,FEDEX,EMS by air.
For large goods will delivery by sea.
Payment :T/T30% payment in advance,70% pay it when we prepared all goods after.
West Uion/PayPal and the special issues can be discussed.
Contact Us
- Chongqing Tianzhiyuan Machinery Co., Ltd.
- Contact nameJane Zhang Chat Now
- Phone86-023-86083286
- AddressFuzibao Community, Tianma Village, Xiema Town
Product Categories
| Chemical Water pump | Drag Water Pump | High Pressure Water pump | Mud Water Pump |
| New Products | Sewage Water Pump | Water Pump And Related Kits |
New Products
-
Chemical Pump(2 Inches) With Aluminum for Industry of Liquid Transfer Hot Sales
-
Self Priming Centrifugal Chemical Pump(2 &3 Inches) in Industrial
-
Centrifugal Chemical Pump(2 Inches) With Plastic Use in Industry
-
Engine Driven Chemical Pumps From China
-
168F Engine Nylon Meterial Transfer Chemical Pumps For Industry Usage
-

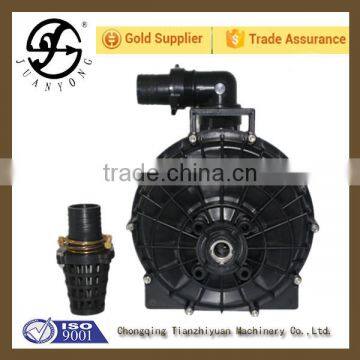

FTB50 2 Inch Salt Water Pump
-
