Home > Products > Chemical Water pump > Self Priming Centrifugal Chemical Pump(2 &3 Inches) in Industrial
Self Priming Centrifugal Chemical Pump(2 &3 Inches) in Industrial
- Shanghai or Chongqing Port
- T/T Credit Card
You May Like
-
Centrifugal Chemical Pump(2 Inches) With Plastic Use in Industry
-
Engine Driven Chemical Pumps From China
-
168F Engine Nylon Meterial Transfer Chemical Pumps For Industry Usage
-
FTB50 2 Inch Salt Water Pump
-
Low Pressure Pressure and Sea Pump Theory Chemical Water Pump
-
Vacuum Chemical Pump for 12v dc Marine Water Pump
Product Details
| Place of Origin | Chongqing, China | Brand Name | Juanyong | |
| Model Number | FTB50 | Theory | Centrifugal Pump | |
| Structure | Diaphragm Pump | Usage | Water | |
| Power | Other, Hydraulic, 5.5HP | Standard or Nonstandard | Nonstandard | |
| Fuel | Gasoline | Pressure | Low Pressure | |
| Application | Cryogenic |
Product Description

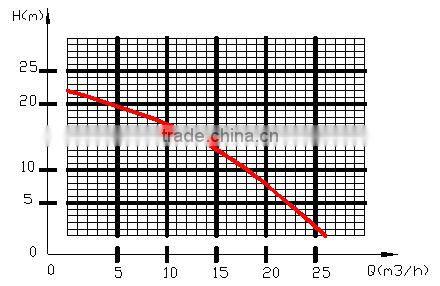

Performance curve
1.Plastic pumps are designed to move fluids that would corrde or damage other types of pumps.
2.They provide broad chemical resistance and lighter in weight than metal pumps.
Parameter
ITEM | FTB50 |
Outlet Size(mm) | 50 |
Inlet Size(mm) | 50 |
Speed(rpm) | 3600 |
Displacement Q.max(m3/h) | 25 |
Lift H.max(m) | 22 |
Suction(m) | 7 |
Engine Model | 168F |
Plastic pumps are designed to move≥5℃ and PH4-11 abrasive materials,acids,adhesives,
chemicals,coolants,liquid metal.
Plastic pump can pump ground water,potable water and salt water.

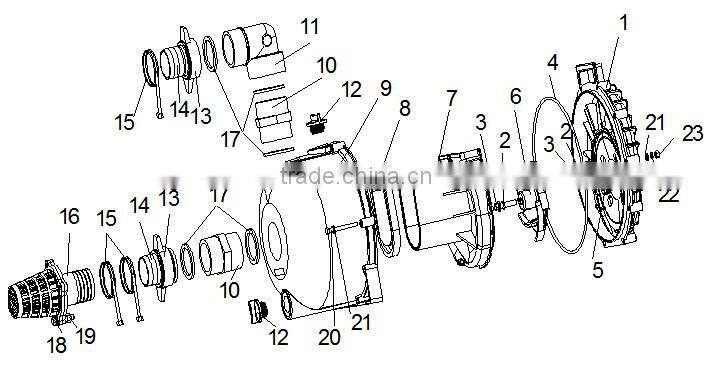

Serial number | Name | Number |
1 | Water pump cover | 1 |
2 | Rubber ring φ12×φ6×3.1 | 4 |
3 | Bolt M8×35 | 4 |
4 | Pump sealing ring | 1 |
5 | Mechanical seal / ceramic | 1 |
6 | Impeller | 1 |
7 | Eddy shell | 1 |
8 | Eddy shell sealing ring | 1 |
9 | Water pump body | 1 |
10 | Inlet joint | 2 |
11 | The water outlet joint | 1 |
12 | Threaded plug pump | 2 |
13 | Pipe joint connecting nut | 2 |
14 | Pipe joint | 2 |
15 | Clamp | 3 |
16 | Filter cover | 1 |
17 | Pipe joint sealing gasket | 2 |
18 | Bolt M6×20 | 2 |
19 | Nut M6 | 2 |
20 | Bolt M6×65 | 10 |
21 | Shim | 20 |
22 | Spring pad | 10 |
23 | Nut M6 | 10 |
