Electric or Diesel Power and Water, Oil, Corrosive Liquid Usage Low Flow Chemical Process Pump
US$ 42 - 52
/ Set
5 Sets(Min. Order)
- Chongqing Port
- T/T Credit Card
You May Like
-
Diesel Engine Centrifugal Water Pump, Water Flow, Chemical Pump, Pumps Pirce
-
Self Priming Chemical Pump(2 Inches) With Aluminum Chemical Pumps
-
Made in China One Year Guarantee Free After Sale Service Industrial Chemicals Plastic for Electric Motor Water Pump
-
Gasoline Fuel and Hand Pump Power High Flow Chemical Pump
-
Chemical Pump(2 Inches) With Aluminum Electric Parts for Industry of Chemical Pump Spares
-
Single-stage Pump Structure and Standard Standard or Nonstandard Water Pump Parts
Product Details
| Place of Origin | Chongqing, China | Brand Name | JUANYONG | |
| Model Number | FTB50 | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Hydraulic | Standard or Nonstandard | Nonstandard | |
| Fuel | Gasoline | Pressure | Low Pressure | |
| Application | Maritime |
Product Description
Product Description
| ITEM | FTB50 |
| Outlet Size(mm) | 50 |
| Inlet Size(mm) | 50 |
| Speed(rpm) | 3600 |

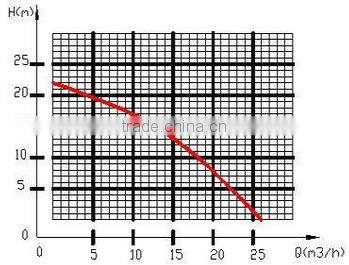

| Lift H.max(m) | 22 |
| Suction(m) | 7 |
| Displacement Q.max(m3/h) | 25 |
| Engine Model | 168F |

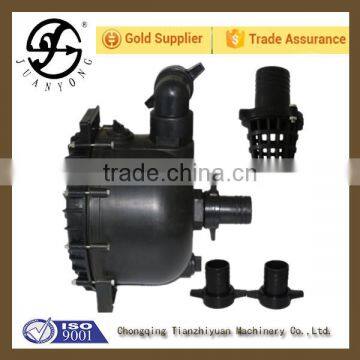

Accessories parts
| Serial number | Name | Number |
| 1 | Water pump cover | 1 |
| 2 | Rubber ring Φ12×Φ6×3.1 | 4 |
| 3 | Bolt M8×35 | 4 |
| 4 | Pump sealing ring | 1 |
| 5 | Mechanical seal/ceramic | 1 |
| 6 | Impeller | 1 |
| 7 | Eddy shell | 1 |
| 8 | Eddy shell sealing ring | 1 |
| 9 | Water pump body | 1 |
| 10 | Inlet joint | 2 |
| 11 | The water outlet joint | 1 |
| 12 | Threaded plug pump | 2 |
| 13 | Pipe joint connecting nut | 2 |
| 14 | Pipe joint | 2 |
| 15 | Clamp | 3 |
| 16 | Filter cover | 1 |
| 17 | Pipe joint sealing gasket | 2 |
| 18 | Bolt M6×20 | 2 |
| 19 | Nut M5 | 2 |
| 20 | Bolt M6×65 | 10 |
| 21 | Shim | 20 |
| 22 | Spring pad | 10 |
| 23 | Nut M5 | 10 |
Our Services
Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk or call us directly.
