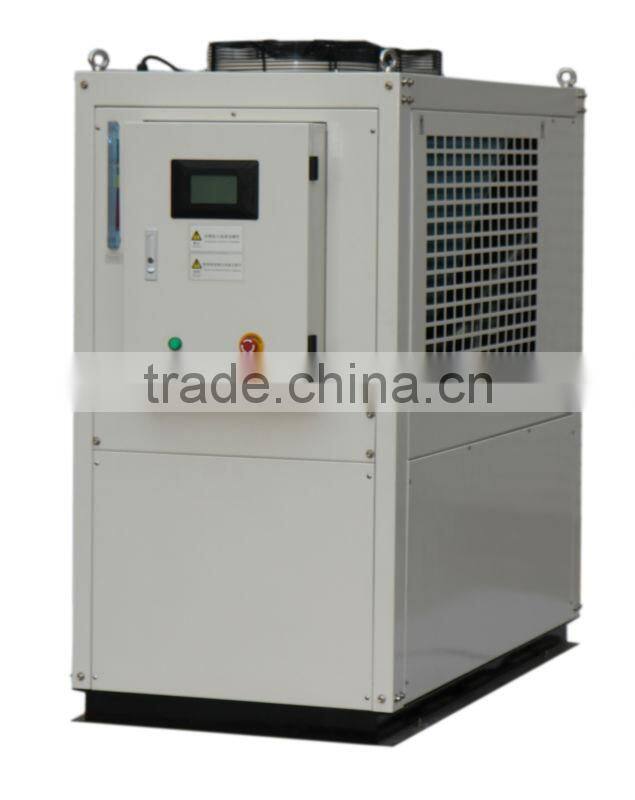

Water Chiller of China

Suitable for CO2 and YAG large power laser equipments, such as laser welding , laser cutter etc. With cooling capacity from 9.0kw~90kw.

Characteristics and Functions:

1) Compact design and beautiful structure:

Vertical design for installation space-saving purpose, top exhaust, easy  for  installation air exhaust duct, anti-corrosive static painting for the coating.

2)  High efficient, stable and low noise system:

Mounted with international brand scroll compressor (Danfoss or Copeland), which is high efficient ,stable and low noise.

Use high efficient stainless steel coil or plate heat exchanger , which is small in dimension.

German EBM and Ziehl-Abegg  fan are used on the air cooled type, which is low in vibration, low noise, and long life and water proof;

Equipped with V-type honey combing fin condenser and tube and shell heat exchanger , which can provide excellent heat exchanging effect.

High -low pressure gauge and protect device. real time error codes display on control panel.

3) Automatic, accuracy and simple control system:

Use digital temperature controller, one button operation, the machine runs automatically by loading default setting value from memory.

Schneider and Moeller electric components, high and low temperature alarm signal output, which can be normal open or normal chose.

Dual control series: automatic constant temperature, two different temperatures water outlet controlled by separate temperature controller.

4)  High lift, high flow, super clean water cycling system:

High lift, high flow and low noise vertical multistage stainless pump.

Stainless steel water tank and PVC connectors for the water cycling circuit.

With adjustable flow switch, easy for adjusting water flow.

Equipped with water level device, convenient for water level monitoring.

Dual temperature dual control system: two independent water tanks pump and water outlet , dual-signal outputs protect.

Specifications:
