Home > Products > Temperature Instrument > SITRANS P280 WirelessHART Pressure Transmitter
SITRANS P280 WirelessHART Pressure Transmitter
- Xi'an
- T/T Credit Card
You May Like
Product Details
| Model Number | SITRANS P280 | Usage | Industrial | |
| Theory | Pressure Thermometer | Accuracy | ± 0.25 |
Product Description

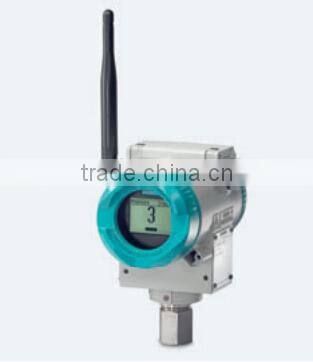

SITRANS P280
The SITRANS P280 is a WirelessHART pressure transmitter that provides all measured process values as well as diagnostic information, parameters, and functions via radio. The device is powered by an internal battery and is designed for ultralow power consumption. The compact and rugged design makes it especially suitable for direct mounting on tanks and pipes in remote areas of plants, and on moving or rotating equipment for process monitoring and asset management applications.
Features:
• Various pressure ranges available (1.6, 10, 50, 200, 320 bar)
• LCD display with functional display items and icons, English or German display
• Maintenance-friendly backlight function
• Sleep mode for efficient battery life management
• Battery status display on LCD and in network overview
• Precise measurement accuracy for higher productivity
• Adjustable 90 and 180 degree display
• Configurable with standard tools that support EDD – for example, SIMATIC PDM
• Extension cable for separate installation of the sensor
• Physical HART maintenance port for commissioning
Specifications:
Technical data:
| Input | |
| Sensor type | Ceramic |
| Characteristic | Linear |
| Connection type | G 1/2“ or 1/2“-14NPT |
Accuracy incl. hysteresis and repeatability | Max ± 0.25 % of sensor’s span
|
| Ambient temperature effect | ± 0.2 %/10 K of sensor’s span |
| Sensor current | N/A |
| Measurement range | 0...1.6, 0…10, 0…50, 0…200, 0…320 bar |
| Measurement unit | mbar, bar, m4H2O, i4H2O, ATM, TORR, Gcm², KGcm², MPa, KPa, Pa, Psi, mmHG, mmH2O, FTH2O, inHG, inH2O |
| Output | WirelessHART radio in 2.4 GHz |
| Power supply | |
| Power source | Lithium thionyl battery D-cell 3.6 V |
| Supply voltage | 3.6 VDC |
| Maximum current (IMAX) | 100 mA |
| Battery life | Five years with one update per minute |
| Approvals | Please ask your regional Siemens representative for details. |
