Product Details
| Place of Origin | Germany | Model Number | FMR240 |
Product Description

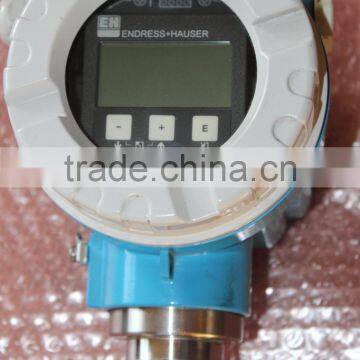

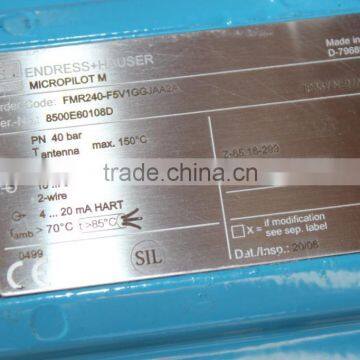

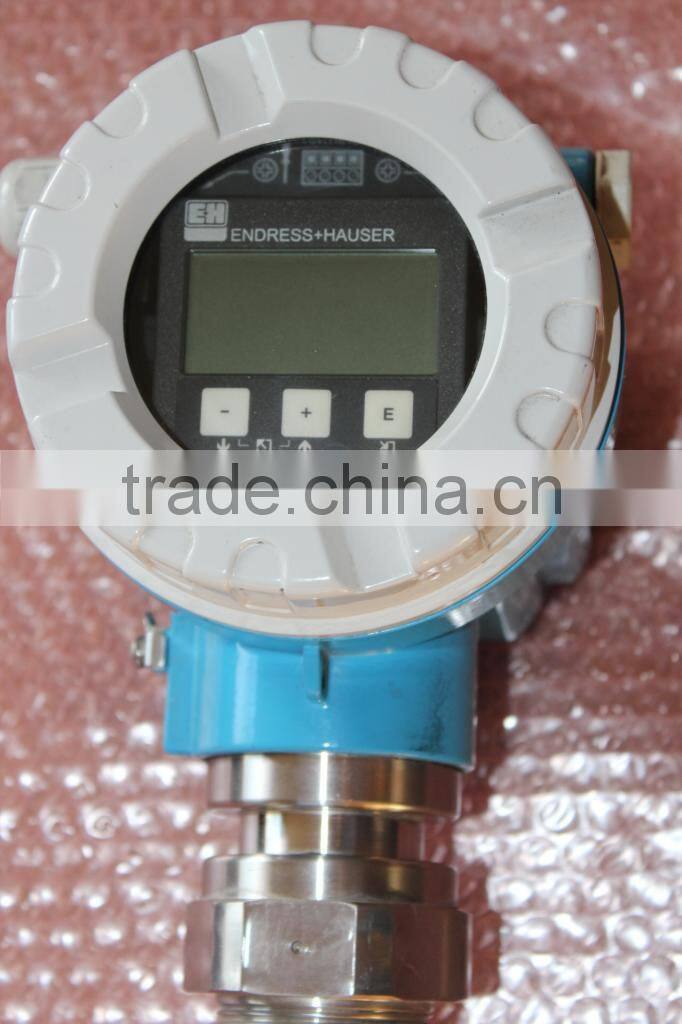

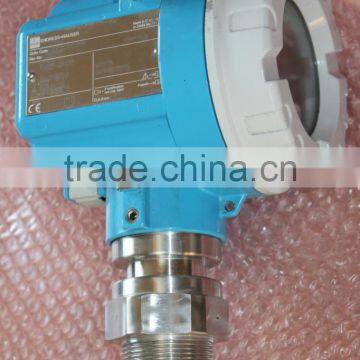

Endress Hauser Micropilot M FMR240
Frequency K-band (~ 26 GHz)
Accuracy +/- 3 mm
Ambient temperature -40 °C...+80 °C
(-40 °F...+176 °F)
Process temperature -40 °C ... 150 °C
-40 °F ... 302 °F)
Process pressure absolute / max. overpressure limit Vacuum...40 bar
(Vacuum...580 psi)
Main wetted parts 316L, Alloy C

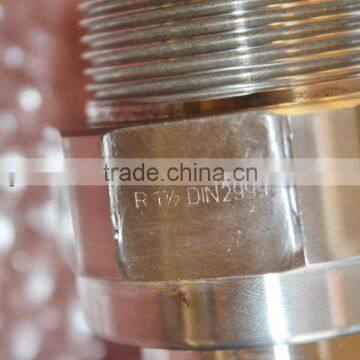

Process connection Thread:
NPT 1 1/2, R 1 1/2
Flange:
DN50...DN150,
ASME 2"...6",
JIS 10K
Process connection hygienic Tri-Clamp ISO2852
Tank size / Application null
Max. measurement distance Standard: 40m (131ft)
With additional option F (G): 70m (229ft)
Output 4...20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus
Certificates / Approvals ATEX, FM, CSA, IECEx, TIIS, NEPSI
Overfill prevention WHG
SIL
EN10204-3.1
NACE
Marine GL/ABS/NK
Application limits Maximum measuring range is dependent on the tank form and/or application
Ammoniacal gas phase
FMR230 in stilling well
strong buildup formation
FMR230 with air purge
316L/1.4435 or Alloy C non-resistant
FMR231,244, 245
Hygiene requirements
FMR231, 245
Custody transfer measurement
FMR5xx
