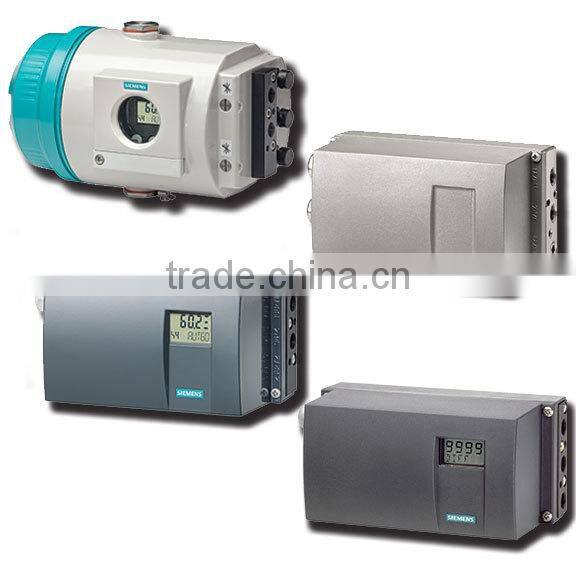

Positioner in compact design: SIPART PS2
The SIPART PS2 is currently the most widely used positioner for linear and part-turn actuators in an extremely diverse range of process industries – and not without good reason. The proven all-around talent provides comprehensive functions – including intelligent diagnostics – and can optionally communicate using HART 7, PROFIBUS PA or Foundation Fieldbus. A product which has been tried and tested so many times is always the right choice.
Optionally available with Makrolon, aluminum, stainless or flameproof steel enclosure, the positioner is well-equipped for all ambient conditions. Available as standard with IP66 or NEMA 4x protection, it defies even challenging application environments.
Detail
| Type of construction: | Compact |
| Setpoint signal: | 0/4 to 20 mA with / without HART 7 signal or PROFIBUS PA / Foundation Fieldbus protocol |
| Range of stroke: | 3 to 130 mm (larger strokes on request) |
| Angle of rotation range: | 30° to 100° |
| Ambient temperature: | -30 °C to +80 °C (other temperature ranges on request) |
| Required air quality | Class 2 to ISO 8573-1 |
| Max. air consumption in the controlled state | < 0.036 m3n/h |
Benefits
• As standard with IP66 or NEMA 4x protection, optionally available with Makrolon, aluminum or stainless steel enclosure, or as flameproof aluminum version
• Intelligent diagnostics functions
• Compact booster option
• Fail in place and fail-safe functions
• Comprehensive certificates and approvals, e.g. ATEX, IEC, FM, CSA, NEPSI, INMETRO, EAC, KC, GL, LR, DNV, ABS and BV
