Home > Products > sensor > SITRANS TH200 Universal, supporting all common RTDs, thermocouples, resistance and millivolt-sensors
SITRANS TH200 Universal, supporting all common RTDs, thermocouples, resistance and millivolt-sensors
- 30000 Unit / Units per Month
- Xi'an
- T/T Credit Card
You May Like
Product Details
| Model Number | TH200 |
Product Description

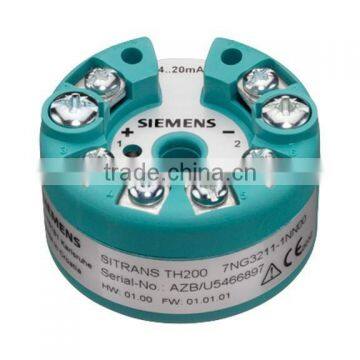

SITRANS TH200
The universal
SITRANS TH200 is designed to support all common RTDs, thermocouples, resistance and millivolt-sensors. Setup is quick and easy with the transmitter-modem and SIPROM T software. This configuration tool can be downloaded free. Unique user-friendly details are implemented: Without opening the 4-..20mA loop, the output current can read directly with a multimeter. A red/green LED shows the technician the status at a glance.
Detail
| Input | Resistance thermometers, Thermocouples, Resistance-type sensors, DC sources |
| Output | 4 to 20 mA |
Benefits
• Measures temperature with a linear output signal
• high accuracy across entire ambient temperature range
• reduces plant noise
• Alarm signal for sensor break or short-circuit according NAMUR 43
• Electro magnetic compatibility (EMC) according DIN EN 61326 and NE21
• Saves expensive compensation cables with the internal reference junction
• Galvanic insulation for accuracy and safety in thermocouple applications
• Single- or dual-point trim
• Custom characteristic curve for application of non-standard sensors
• Difference- and average- measurement
• Explosion protected executions for US, Canada and Europe
• Rugged design, fully potted electronics
