084Z7014 Heavy-duty Temperature Sensor
Negotiable
/ Piece
1 Piece(Min. Order)
- Xi'an
- Credit Card
You May Like
-
084Z5275 Heavy-duty Temperature Sensor
-
SITRANS TH300 The HART Universal
-
SITRANS TH200 Universal, Supporting All Common RTDs, Thermocouples, Resistance and Millivolt-sensors
-
SITRANS TH100 Economical for PT100 Measurements
-
SIPART PS2 Positioner for Linear and Partturn Actuators PS2
-
High Quality 8721 Hygienic Sensor
Product Details
| Brand Name | Danfoss | Model Number | 084Z7014 |
Product Description
Product Overview:
084Z7014

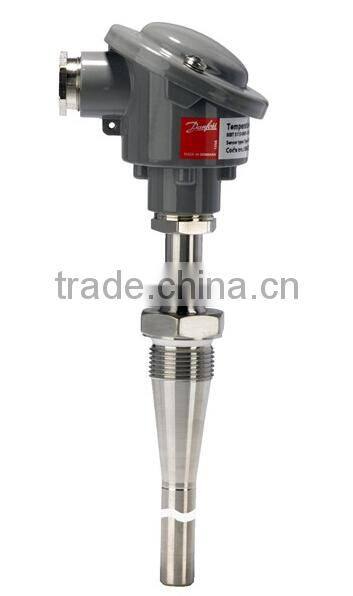

The MBT 5113 is a heavy-duty temperature sensor that can be used for measuring and regulating exhaust gas from diesel engines, turbines and compressors within stationary and marine applications.
This temperature sensor is based on a type K thermo couple, which measures temperatures up to 800 °C. The measuring insert can be changed even while operating the application.
All parts in contact with the media are made of stainless steel AISI 316 Ti. The sensor is delivered with B-head as standard and, if needed, a transmitter (MBT 9110) can be ordered as an integrated part of the sensor.
This temperature sensor is based on a type K thermo couple, which measures temperatures up to 800 °C. The measuring insert can be changed even while operating the application.
All parts in contact with the media are made of stainless steel AISI 316 Ti. The sensor is delivered with B-head as standard and, if needed, a transmitter (MBT 9110) can be ordered as an integrated part of the sensor.
- With thermocouple up to 800° C media temperature
- Available with built-in transmitter - with or without Eex ia IIC T4/T6 approval
- Available with all relevant marine approvals
Product Specifications:
Characteristic | Value |
| Type | MBT 5113 |
| Weight | 0.980 Kg |
| Ambient temperature max. [°C] | 90 °C |
| Ambient temperature max. [°F] | 194 °F |
| Connection standard | ISO 228 |
| Connection type | G |
| EAN | 5702423181360 |
| Electrical connection | Type B |
| Electrical connection | Type B / Pg 16 |
| Electrical connection size | Pg 16 |
| Enclosure rating | IP65 |
| Extension length [in] | 2,00 in |
| Extension length [mm] | 50 mm |
| Insertion length [in] | 12,00 in |
| Insertion length [mm] | 300 mm |
| Number of terminals [pcs] | 2 PC |
| Output signal | mV |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection size | 3/4 |
| Process connection size | G 3/4 A |
| Process connection standard | ISO 228-1-A |
| Process connection type | G |
| Protection tube diameter [in] | 0,55 - 0,95 in |
| Protection tube diameter [mm] | 14,0 - 24,0 mm |
| Protection tube material | AISI 316 Ti |
| Quantity per packing format | 10 PC |
| Sensor Insert | exchangeable |
| Temperature Range [°C] | -50 - 800 °C |
| Temperature range [°F] | -58 - 1472 °F |
| Thermocouple | 1 x NiCr-Ni, Type K |
| Thermocouple design std. | EN 61515 |
| Thermocouple tolerance | EN 60584-2 Class 2 |
| Tolerance | EN 60584-2 Class 2 |
| Type designation | MBT 5113-B001-300-10-0000 |
| Wires [pcs] | 2 PC |
