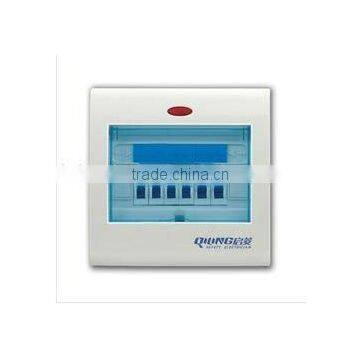

High Quality 4-6 ways Electrical Distribution Box PLENSENDEN

Specifications

Specifications

7-9 WAY Electrical Distribution Box
1.Close Conection
2. Ultra -Large Sapce
3.Clear identification
4.Easy adjustment

POWER DISTRIBUTION BOX/ELECTRICAL DISTRIBUTION BOX

 Distribution Box

 A. APPLICATION

The distribution box is suitable for mounting of modular electric installation devices . The product, fitted with neutral and earth terminal bars and rail, is widely used in low voltage distribution networks for power supplying of consumers and commercial buildings.

B. Advantage

1) Close connection

Neutral wice line bank and earthing wire line bank both adopt close type with a steady overall structure, which makes inside wiring more esthetical and safer,

2) Ultra-large space

Wider space to house wires allows wiring inside case body and electrical safety distance between each wire and makes operation safer and more comfortable.

3) Clear identification

The independent and legible circuit break control circuit chart makes circuit framework clear and definite and facilitates the connection,seeking and maintenance of all circuits

4) Easy adjustment

With innovative adjusting function , the Distribution box can be self adjusted in installation depth direction within a certain distance apart from external wall,and the maximum depth adjusting range is 20mm, The newly added guide track balance bar can keep guide track support plate vertical all the time and make installation more steady.

5. Easy Wiring

Movable guide track support plate can be  hung outside concealed installation box to connect wires without space constrint inside case body,Elliptical hole is provided in guide track support plate to allow adjustment of distribution box face covering to horizontal position and achieve a more esthetical appearance.

6. Automatic Opening

Completely new on-off screen with push-botton switch,easy to operate press the button slightly , it will turn on automatically.

D. DIMENSIONS

 Distribution box ------Plastic series (exposed)

1. blue transparent cover:  Plastic
2. White Cover :  Plastic
3. White Box : Iron
