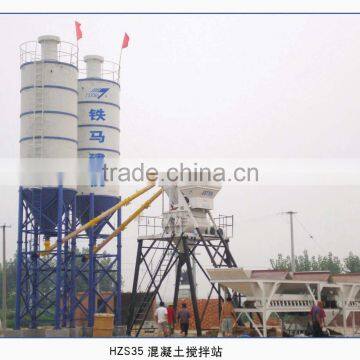

Concrete batching plant HZS35

MODEL

HZS35 Simple type

MAX.PRODUCTIVITY

35M³/H

SPECIFICATION

1. centralized control

2. discharging height :3.8m

mixing console

JS750

Brand name

Tiema

Place of origin

China

Measuring Precision of the water(%)

±2

Measuring Precision of cement(%)

±1

Measuring Precision of admixture(%)

±2

the precision of aggregat(%)

±2

Max.Measuring value of Cement

400kg

Max.Measuring value ofaggregate

2000g

Max.Measuring value of Constellation

200kg

Max.Measuring value of admixture

40kg

delivery value of screw conveyer

35t/h

item

Commodity

name

description

quatity

note

01

Mixing console

JS500

1

Js500 dual-axial mixing;

Discharge form :pneumatic

02

Batching plant

PLD1200A

1

Pld1200III electronic batching plant ;discharging with pneumatic; automatic  Batching of Aggregate

03

Feeding system of aggregate

1

Feeding syetem with Climb bucket;high efficient;easy to overhauling

04

Measuringsystem of  cement

1

Measuringsystem with electronic balance;Pneumatic butterfly discharging; The central control

05

Measuring system of water

1

Measuring system with electronic balance; The central control

06

filler bin

Cement

SYN60T

1

With Silo material level instrument, warehouse top precipitator, unloading valve disc, current mouth, blowing arch breaker

flyash

SYN100T

2

07

screw conveyer

LSY219-6M

1

Connect with , universial feeding hole

08

Pneumatic system

1

With 0.8m³air compressor

1
