electric crane Single-beam

Specifications

L-leg single-beam electric crane with hook Cap.5-32/5t

Apply the situation:

Single beam gantry cranes with hook are available for general service, such as loading, unloading, lifting and transferring work in outdoor storage or railways.

Ordering must know:

   It consists of four main parts, namely, the bridge structure, the travelling mechanism, the trolley and the electric equipment. The bridge is welded structure of box-type girder, individual drives are adopted for travelling mechanism on each end of the crane. All movements of the crane are controlled from the cabin. Either rigid shapes of steel (angles of tees) or flexible insulated cable shall be selected to be utilized as runway conductors and proposed in the order by the purchaser. Max and min value of environment temperature, the sort of power supply, the voltage and other data shall be proposed by user when filling the order form.

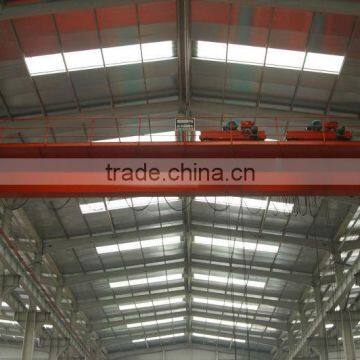

LDA Modle Motor-driven Single Beam crane

LDA model single beam motor crane is improved and designed on the basis of LD modle .it is characterized by more reasonable structure and higher strength steel as a whole .Used together with CD1modle ,MD1modle electric hoist as a complete set ,it is light duty crane with capacity of 1 to 20 tons .The spen is 7.5-22.5m,Working grade is A3-A5.Working temperature is -25  to 40  .

This product is widely used in plants ,warehouses,material stocks to lift goods ,It is prohibited to use the equipment in the combustible ,explosiveor corrosives environment.

Atahis product hac two operational methods,ground or operational room which has open model and closed model and can be installed on the left or right side according to the practical situation .And the direction of entering the gate has two forms, sideway and ends in order to satisfy the users choice under different conditions.

Main Technical Date
