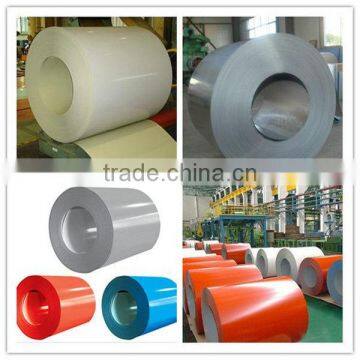

galvanized steel coil

FOB Price

USD $500 - $500 / Ton

50 Tons(Min.Order)

Supply Ability 10000 Ton / Tons per Month
Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	FSS		Model Number	all
Material	Color Steel

Product Description

Company Information

Qingdao Zhuzhiyuan Steel Structure Building Materials Co.,ltd, also called "FFS" for short, is a comprehensive company integrating services in steel structure design, steel structure manufacture and supply, and steel structure installation guidance. Our company has rich experience in the industry. We provide a full range of technical services for our partners according to projects' requirements. Our leading products include H section steel component with monthly output of 1000 tons. Meanwhile steel structure plant, large exhibition hall, equipment platform, light steel villa, container house, prefabricated house, color coated steel coil materials, other steel structure and aluminum alloy structure materials are all our popular products.

With the help of the advantages of local resources, we provide you with unexpected favorable price.In the process of products'supply we execute strict quality management and control system. And in the process of products' use and installation we provide full technical guidance and promise that our product quality is 100% qualified. Serious, responsible, timely service, high qualified rate are our faith. To give us a cooperation chance is the most important choice in your life. Looking forward to your cooperation.

Galvanized Sheet:

Hot galvanized sheet and alloying galvanized sheet have excellent performance, ideal combination property including

corrosion resistance, formation and coating, and are mainly used for building, automobiles, metallurgy, and electrical

equipment. Galvanized sheet is mainly used for making roof, door and window, roller shutter door, and suspended

skeleton in building industry, vehicle shell, chassis, door, trunk lid, oil tank and fender in auto industry, steel sash blank

and color coated sheet substrate in metallurgy industry, and refrigerator base, shell, refrigerating chamber, kitchen

equipment and other parts in electrical equipment industry.

Hot Rolling Pickling Steel Strip

1,Range and Production Capacity

Production line	Product thickness mm	Product width mm	Steel coil weight (t)	Steel coil inner diameter mm	Production capacity (10,000t/a)
Push-pull pickling unit	1.8-4.0	800-1,250	≤28	610	65
Continuous pickling unit	1.8-4.5	800-1,280	≤28	610	120

2. Number and Mechanical Property

No.	Tensile test
	Yield strength Rel (MPa)	Tensile strength Rm (MPa)	Percentage elongation after fracture A%
	Yield strength Rel (MPa)	Tensile strength Rm (MPa)	1.8~<2.0	2.0~<2.5	2.5~<3.2	3.2~<4.0	≥4.0
SPHC		≥270	≥29	≥30	≥31	≥32	≥32
SPHD		≥270	≥32	≥33	≥35	≥37	≥39
SPHE		≥270	≥33	≥35	≥37	≥39	≥41
SS330	≥205	330~430	≥26
SS400	≥245	400~510	≥21
SAPH310	≥
SAPH370	≥370	≥255	≥32
SAPH400	≥
SAPH440	≥
Notes: 1. The tensile test specified value in the table is suitable for longitudinal test piece. 2. Tensile test uses sample of L0=50mm, b=25mm, namely P14 sample in GB/T228. 3. Steel strip is delivered in the state of hot rolling.

Coating Performance

Coating type

Pencil hardness

Glossiness (%)

T bend

MEK

Reverse impact J

Salt fog resistance (h)

Low

Medium

High

Low

Medium

High

Low

Medium

High

Polyester

≥F

≤40

40~70

>70

≤5T

≤3T

≤1T

≥100

≥6

≥9

≥12

≥480

Silicon modified polyester

≥F

≤40

40~70

>70

≤5T

≤3T

≤1T

≥100

≥6

≥9

≥12

≥600

High-durability polyester

≥HB

≤40

40~70

>70

≤5T

≤3T

≤1T

≥100

≥6

≥9

≥12

≥720

Polyvinylidene fluoride

≥HB

≤40

40~70

>70

≤5T

≤3T

≤1T

≥100

≥6

≥9

≥12

≥960

Number and Standard

No., standard, application	No.	Executive standard	Application and characteristics
Ordinary use	TDC51D+Z(ZF)	GB/T 12754-2006	Ordinary use
For stamping	TDC52D+Z(ZF)		For mechanical seaming, and deep punching. Coating and welding performances of alloying hot galvanizing are better.
For structure	TS250GD+Z (ZF)		Used for structure. Good corrosion resistance and processability.
	TS280GD+Z (ZF)
	TS320GD+Z(ZF)
	TS350GD+Z( ZF)
	TS550GD+Z(ZF)
