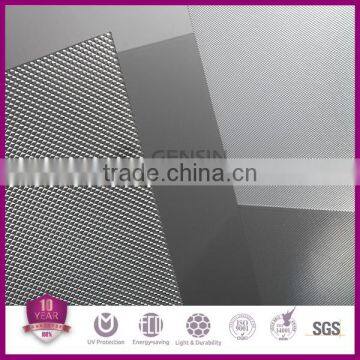

Prism Pattern Light Diffuse Polycarbonate Sheet
- Shanghai/Ningbo
- T/T D/P D/A
You May Like
-
Good Light Transmittance Transparent Prism Polycarbonate LED Diffuser
-
Prismatic Polycarbonate Sheet, Light Diffuser Polycarbonate Sheet
-
Light Diffuse Polycarbonate Prism Sheet 600*600mm For LED Lights Covers Panels High Light Transmission
-
Unbroken Polycarbonate Sheet Prism Diffusor For LED Lights 595 x 595mm
-
5mm Plaid Textured LED Light Box Polycarbonate Solid Sheet Opal Light Diffusion
-
10-year Quality Guarantee 5mm Diameter Prismastic Pattern Light Diffuser Polycarbonate Sheet 1220*2440mm
Product Details
| Place of Origin | Zhejiang, China | Brand Name | GENSIN/OEM | |
| Model Number | GA-202 |
Product Description
Specifications
Prism pattern light diffuse polycarbonate sheet1. 100% virgin material
2. UV & 10years warranty
3. Advertising
4. 2mm-6mm

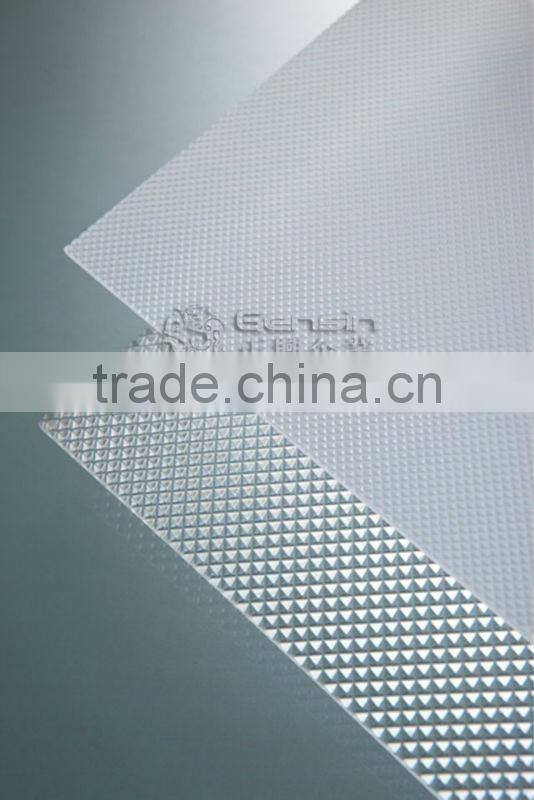

Prism pattern light diffuse polycarbonate sheet
specifications:
1) Thickness: 1.5mm--6mm
2) Maximum width: 2,100mm
3) Length: any dimension
4) Prism pattern
5) Specific gravity: 1.2g/cm3
6) Colors: clear, blue, green, opal, brown,bronze,etc.
7) Package: PE protective film on the smooth side of polycarbonate sheet, pallets
Thickness(mm) | Standard size (mm) | Min bend radius (mm) | Specific gravity (g/cm3) | Standard colors |
2 | 1200-2100 | 300 | 1.2 | Clear, green, blue, brown, smoky gray |
2.5 | 375 | |||
3 | 450 | |||
4 | 600 | |||
5 | 750 | |||
6 | 900 | |||
8 | 1200 | |||
10 | 1500 | |||
12 | 1800 |
Technical features:
1) Impact strength: 850J/m.That means the impact resistance of polycarbonate solid sheet is about 200 times of comman glass ,20 times of acrylic sheets.
2)Light weight:About 1/2 times of glass .
2)Light transmission(clear color)80%--90% for different thickness
2) Light transmission: 80%-90% for different thickness of clear color
3) Specific gravity: 1.2 g/cm
4) Coefficient of thermal expansion: 0.065 mm/moC
5) Service temperature range: -40oC to 120oC
6) Heat conductivity: 2.3-3.9 W/m2 oC
7) Tensile strength: >60N/mm2
8) Flexural strength: 100N/mm2
9) Modulus of elasticity: 2,400mPa
10) Tensile street at break: >65mPa
11) Elongation at break: >100%
12) Specific heat: 1.16J/kgk
13) Heat deflection temperature: 140oC
14) Soundproof index: 4mmthickness--27dB, 5mm--28dB, 6mm--29dB, 8mm--31dB, 10mm-32dB 12mm--34dB
