Home > Products > New Products > NEW!! PP200,Polypropylene PP staple fiber needle punched geotextile non woven

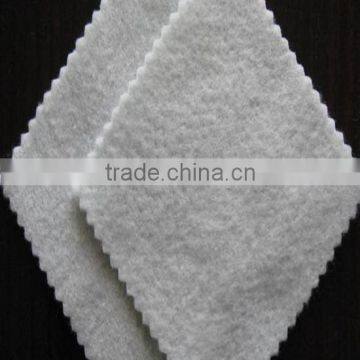

NEW!! PP200,Polypropylene PP staple fiber needle punched geotextile non woven
- 3000 Square Meter / Square Meters per Month
- Xingang China
- T/T L/C D/P D/A Credit Card
You May Like
-
Big Stock!! RTV2 silicone for making mould
-
Factory!! monofilament Polypropylene Fiber/PP fiber
-
Factory!! 100% Viscose Rayon Filament Yarn
-
Factory!!flame retardant fiber for filling pillows/fire resistant fibre
-
Factory!!Staple Fiber/fibre virgin/ composite bamboo charcoal fiber
-
Factory!! fiber glass filament yarn/glass fiber tow
Product Details
Brand Name | GF | Model Number | Geotextiles | |
Geotextile Type | Non-Woven Geotextiles |
Product Description
Description:
Polypropylene Needle Punched Geo Textiles Pp Staple Fiber For Geobag Geotextile Fabric Lowes is a special kind of nonwoven geotextile because of its special manufacture method by puncturing the rolling formed layer made of randomly oriented short staple fiber. Our raw material is the top class 100% new PP(Polyproplylene) or PET(Polyester) fiber. The needle punch process involves forcibly entangling layers of loose staple fibre into three dimensional structure by sequentially punching and pulling out barbed needles through the fiber matrix, and forms a strong fabric that retains its dimensional stability, expands the serving year to all the applied project. Because of its proven track record and versatility, Needle Punched, as the most commonly used Nonwoven Geotextile, is widely used in civil and environmental engineering applications like subsurface drainage, roadway separation, railroad stabilization, erosion control, hard armor underlayment, landfill leachate collection, underground retention/detention systems, environmental protection and other projects.
Specification:
Mass Per Unit Area: 100-900g/m2
Fiber Type: Staple fiber
Color: White, Black, Grey
Width Range: 1-6m
Length: 50m/100m/120m
Technical Data for Short Fiber:
Properties | Unit | PET100 | PET150 | PET200 | PET250 | PET300 | PET350 | PET400 | PET450 | PET500 | PET600 | PET800 | |
Mechanical Properties | |||||||||||||
Tensile Strength | MD | KN/m | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11.0 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 |
TD | KN/m | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11.0 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | |
Tear Strength | MD | KN≥ | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.60 |
TD | KN≥ | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.60 | |
CBR Plunger Strength | KN≥ | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 | |
Elongation at Yield | MD | % | 25~100 | ||||||||||
TD | % | 25~100 | |||||||||||
Hole Size | O90(O95) | mm | 0.07~0.2 | ||||||||||
Vertical Permeability | cm/s | k*(10-1~10-3),k=1.0~9.9 | |||||||||||
Identification Properties | |||||||||||||
Material | / | Polyester | |||||||||||
Color | / | White | |||||||||||
Thickness | mm,≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | |
Weight unit area | g/m² | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | |
Forms of Supply | |||||||||||||
Roll width | m | 1~6 | |||||||||||
Roll length | m | 100 |
