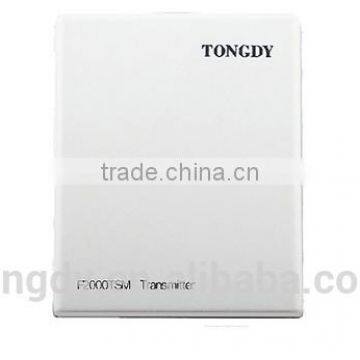

2015 new temperature and humidity meter

FOB Price

Negotiable / Piece

50 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China		Brand Name	Tongdy
Model Number	F2000TSM-TH

2015 new temperature and humidity meter

	Temperature	Humidity
Sensing element:	NTC	Capacitive sensor
Measuring range	-20~60(default) 0~60 selectable	0 -100%RH
Accuracy	±0.5 (25, 40%-60%RH)	±3%RH (25, 40%-60%RH)
Stability	/	1%RH per year
Storage environment	-40-60
Connection	Screw terminals, non-polar,
Set measurement zone	The zero and the end can be set via RS485
Housing	PC/ABS fireproof material
Output	2X0,1~5V/0,2~10V selectable by users via a jumper or 2X 4~20mA optional
Power supply	24V DC or 24V AC ±20%
Power cost	≤2W
Resistance permitted	≤500Ω

1.Temperature and humidity transmitter designed for transmit relative humidity measurement and temperature measurement.

2.Wall mounting and duct type selectable

3.Provide 1x0~10VDC/0~5VDC/4~20mA humidity output, as well as a field range able

0~10VDC/0~5VDC/4~20mA temperature output.

4.Two temperature ranges selectable in orders

5.Humidity output is automatically corrected over the full range of operating conditions

6.One point field of temperature and humidity measurement modification

7.RS485 communication is optional
