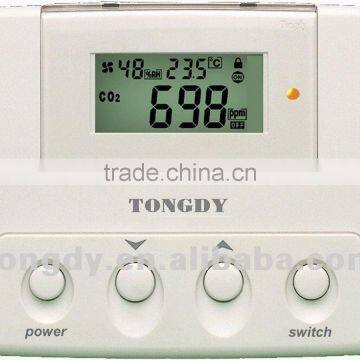

wholesale OEM co2 gas monitor for temp.,humidity

gas monitor Application

F2000IAQ-CO₂ -3003Dmultiple controller is used to controlCO₂ level, temperature and humidity in order to offer right environmentfor plants growth or for foods storage.

It provides three dry contact outputs to control a carbondioxide generator and a ventilator or other temperature/humidity equipments. Itcan provide RS485 communication with independent address to PC or other controlsystems.

It will be used below application:

1. Greenhouses, which include vegetable planting houses and flowersplanting houses.
2. Modern hydroponics gardens
3. Other relevant field of agriculture
4. Keep food and vegetable on fresh

5. ¨       Specifications

   Gas detected	Carbon Dioxide (CO2)
   Sensing element	Non-Dispersive Infrared Detector (NDIR) with more than 10 years lifetime
   Temperature sensor	NTC
   Humidity sensor	HS series capacitive sensor
   Temperature dependence	0.2% FS/°C
   Temperature correction	Self compensation
   Power supply	100VAC~240VAC or 24VAC, 50/60HZ±10%, selectable in order
   Consumption	3.5 W max. ; 2.5 W avg.
   Accuracy@25°C(77°F)	±40ppm + 3% of reading (0~5,000ppm) ±75ppm or 10% reading whichever is greater (0~20,000ppm)
   Stability	<2% of FS over life of sensor (15 yr typical)
   Calibration interval	ABC Logic Self Calibration Algorithm
   Non linearity	<1% of FS
   Pressure dependence	0.13% of reading per mm Hg
   Altitude calibration	Programmable from 0-9,900m in 100m increments
   Response Time	<2 minutes for 90% step change
   Signal update	Every 2 seconds
   Warm up time	24 hours (first time) 10 minutes (operation)
   CO2 measuring range	0~5,000ppm 0~20,000ppm (optional)
   CO2 setting & Display resolution	1ppm
   Temperature measuring range	-20~60°C(-4~140°F)
   Temperature setting range	5~45°C(41~113°F)
   Humidity measuring range	0~99%RH
   Humidity setting range	5~95%RH
   Output resolution	10Bit
   Relay output	Three ways dry contact outputs with programmable selection to control CO2,temperature,humidity Rated switching current: 2A(220VAC/30VDC), resistance load
   Communication interface	RS-485, 9600/14400/19200(default)/28800 or 38400bps (programmable selection), 15KV antistatic protection, 3 independent base address, max network node 64.
   Flow rates	80 ~ 120 cc/min
   Operation conditions	0~50°C(32~122°F); 0~95%RH, non condensing
   Storage conditions	0~50°C(32~122°F); 0~90%RH
   Weight	360g
   Dimensions	130mm×90mm×40mm
   Installment standard	65mm×65mm or 2”×4”wire box
   Wiring standard	Wire section area<1.5mm2
   Approval Standard	CE-Approval









   ¨                                                     Shipping Information



   Indiv. Ctn. Dim	135mm×95mm×55mm
   Master Ctn. Qty	40
   Master Ctn. Dim	44cm(L)×32cm(W)×32cm(H)
   Master Ctn. Wt.	15.5 KG





   ¨       Models



   Model	Description
   F2000IAQ-CO2-3003D -(A)/(B)(C)	Special for green house and other agricultural fields. CO2& temperature& humidity detection to control CO2 generator and ventilation, photosensitive sensor detection to control CO2 generator day/night working mode. Power supply: (A): 200/240VAC   (B): 100/120VAC              (C): 24VAC
   F2000IAQ-CO2-5003D -(A)/(B)(C)	Special for green house and other agricultural fields. CO2&temperature&humidity detection to control CO2 generator and temperature & humidity devices, photosensitive sensor detection to control CO2 generator day/night working mode. RS485 communication interface. Power supply: (A): 200/240VAC (B): 100/120VAC (C): 24VAC
