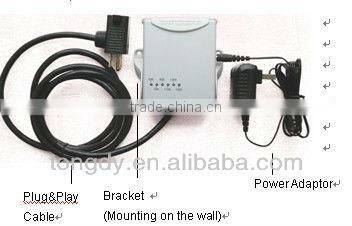

Best Selling CO2 Controller for CO2 Generator

Power supply

12VDC

Or 110VAC~230VAC with a power adapter

Consumption

1.0 W Max

CO2 sensor

Non-Dispersive Infrared Detector (NDIR)

ABC Logic Self Calibration(default: ineffective)

CO₂ measuring range

0~2,000ppm

Accuracy@25°C(77°F)

±50ppm + 3% of reading

Stability

<2% of FS over life of sensor

Response time

<2 minutes for 90% step change

Warm up time for turning-on

48 hours (first time), 2 minutes (operation)

6 green LED lights

1^st green light on as CO2 measurement≤700ppm

2^nd green light on when 700ppm<CO2 measurement<900ppm

3^rd green light on when 900ppm<CO2 measurement<1,100ppm

4^th green light on when 1,100ppm<CO2 measurement<1,300ppm

5^th green light on when 1,300ppm<CO2 measurement<1,500ppm

6^th green light on as CO2 measurement>1,500ppm

Dry contact output

Max. switch current: 6A (load resistance)

Four CO2 levels selectable to control the relay by jumpers

CO2≤700ppm the relay is on and CO2≥900ppm the relay is off

CO2≤900ppm the relay is on and CO2≥1100ppm the relay is off

CO2≤1100ppm the relay is on and CO2≥1300ppm the relay is off

CO2≤1300ppm the relay is on and CO2≥1500ppm the relay is off (default)

Operation conditions

0~50°C(32~122°F); 0~95%RH, non condensing

Storage conditions

0~40°C(32~104°F); 0~90%RH, non condensing

Dimensions/Net weight

100mm×80mm×24mm (H X W X D) /110g
