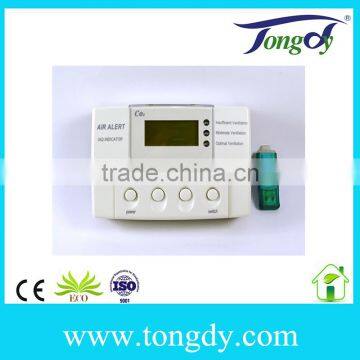

Advanced USB Data logger Carbon Dioxide Detection CO2 controller

1. Real-time monitoring carbon dioxide (CO2) measurements during 0ppm to 20,000ppm range

2. Optional real-time monitoring temperature from -20℃ to 60℃ and relative humidity from 0 to 100%RH

3. Non-dispersive infrared (NDIR) CO2 sensor with self calibration, 15 years lifetime

4. The 3-LED indicator lights indicate three CO2 measured ranges

5. LED lights brightness adjustable

6. Easy preset CO2 level for buzzer alert (optional)

7. Provide 1X On/Off dry contact output to control alternative a ventilator and a CO2 generator

8. An internal data logger is used to record CO2  measurements as well as optional temperature and RH% measurements.

9. With super large capability memorizer, it can save data of up to 115 days

10. Provide the software to preset the sampling time, read and record CO2/temperature&RH levels on PC

11. Post the data from the internal memorizer by any USB disk, and copy the data to a PC

n  Application

The monitor/controller is special design to monitor and alarm CO2 level, also provides one on/off relay output to control a fan or a CO2 generator.

An data logger is designed inside, which can record CO2 measurements more than 115 days and can be saved the data via a USB disk.

The memorial CO2 monitor/controller not only very easily to be used as a CO2 monitor and controller, but also as a recorder of the measurements.

Applications: Schools,kindergartens, office buildings, greenhouses and so on.

n  Models Guide

FAQ

Shipping and Packing

 Inner Package: Standard Product Cartons

Outter Package; Standard TNT,DHL, and other Satandard Carton
