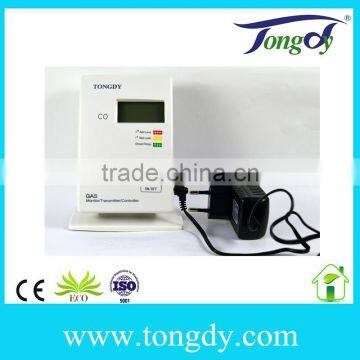

Advanced Carbon Monoxide Detection CO Alarm Underground Parking Lot

     1. Real time monitoring carbon monoxide level with range from 0 to 500ppm.

     2. Semiconductor sensor with up to 5 years long lifetime

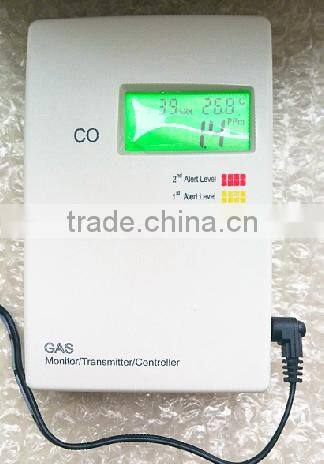

     3. Three-color (green/yellow/red) LCD backlit indicates three carbon monoxide ranges

     4 Temperature detection and display with optional humidity display

     5.Preset the buzzer alarm level for measured carbon monoxide

      6.Provide 1xOn/Off relay output to control a ventilator and Provide four setpoints of CO to control the relay action

<![        7.Modbus RS485 communication interface optional, 15 KV antistatic protection, independent address setup

<!        8.230VAC or 24VAC/VDC power supply

<!        9.Wall mounting type and CE approval

<!n  Application

Carbon monoxide is a deleterious gas with colorless and odorless character , which could be absorbed by lung quickly, the speed rate of combination of CO and hemoglobin more than 250 times with oxygen, then stops oxygen circulation around the body; which have big character of heavy toxicity, so carbon monoxide  poisoning have became a big problem around the world.

G02-CO is used to monitor room carbon monoxide level as well as temperature and optional humidity. With one dry-contact of relay output, it can control a ventilator according the setpoint of carbon monoxide.

With the Modbus RS-485 communication interface, it can be connected with a DDC/PLC or a PC.

1.indoor air quality detection

2.industrial rooms

3.undergroung parking lot and maintance garge

4.frezzing machine room and other places

n  Models Guide

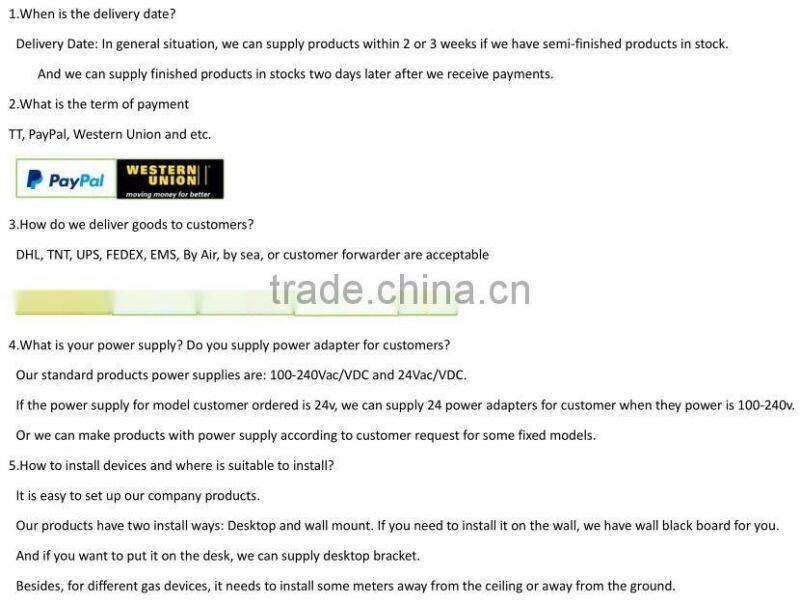

FAQ

Shipping and Packing

 Inner Package: Standard Product Cartons

Outter Package; Standard TNT<DHL, and other Satandard Carton
