Industrial using machine for water leak detect, underground water leakage detecting, underground water leakage detecting

Industrial using machine for water leak detect, underground water leakage detecting, underground water leakage detecting

Host(Amplifier):

Size: 150mm×70mm×116mm,

Weight: 870g

4 combination keys for frequency selecting.

Rechargeable NI-MH batteries inner, and the back-up battery can be plugged in the charging dock.

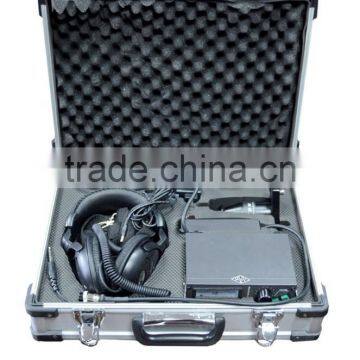

Accessories:

Vibration sensor       1 set

Pickup anvil              1 set

Headphone               1 set

Charger                    1 set

Manuel                      1 piece

Carrying case          1 set

Detecting Ways:

(1)Detecting along the line pipe on the road.

     Please turn on the power and put on the headphone, and turn it to your comfortable volume (there’s      volume button on the headphone also)

     Please check the picture as following: point A is the most sensitive point of the leakage,   point B        shows its   decline, and point C is the leakage point.

     Please put the vibration sensor along the pipe on the

     ground, you can hear the leakage sound suddenly when it gets close to the leakage point. Now you      can switch the frequency to confirm it.

     Detecting along the line pipe on the road.

     Please turn on the power and put on the headphone, and turn it to your comfortable volume (there’s      volume button on the headphone also)

     Please check the picture as following: point A is the most sensitive point of the leakage,   point B        shows its   decline, and point C is the leakage point.

     Please put the vibration sensor along the pipe on the

     ground, you can hear the leakage sound suddenly when it gets close to the leakage point. Now you      can switch the frequency to confirm it.

(2)  Detecting by contacting the pipe line:

       Please fix the vibration sensor on the anvil, and make the bottom of the anvil contact with the pipeline or sluice valve, etc. To do the detecting as the above and  when you hear the highest step and see the highest frequency, then you find the leakage point like point D as the picture below:
