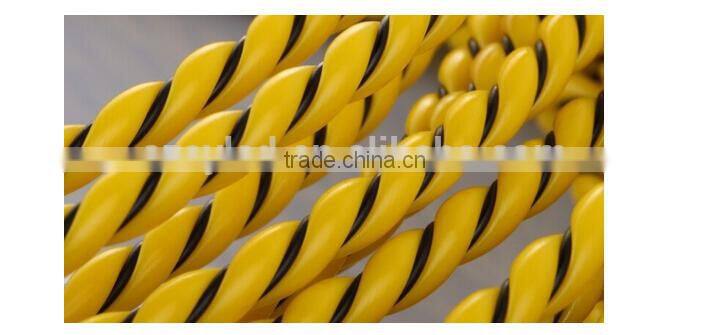

Reliable Leak Detector Sensing Cable Water Leak Sense Cable Water Leak Detection Rope

Reliable leak detector sensing cable water leak sense cable water leak detection rope

Product Features
Cable diameter	0.24 in(6.0mm)nominal
Sensing wires	2*30 AWG with jacket of conductive fluoropolymer
Carrier	fluoropolymer
Cable weight(50 ft/15m length)	2.3 lb (1kg)
Cable color	High-visibility yellow
Technical Information
Breaking strength	Cable only:160 Ib(72KG) .Including connectors:70 Ib(32kg)
Cut-through force	>50Ib with 0.005(>22kg with with 0.13mm) in blade; cross head speed 0.2in/min
Abrasion resistance	>65 cycles per UL719
Maximum continuous operating temperature	70degree
Performance Data
Leak size to alarm(tap water)	2 in(50mm)maximum at any point along sensing cable ,up to 5000 ft maximum system length
Drying time	Cable dries and resets within 15 seconds removal rom standing water
Standard cleaning method	Wash with clean clean damp cloth

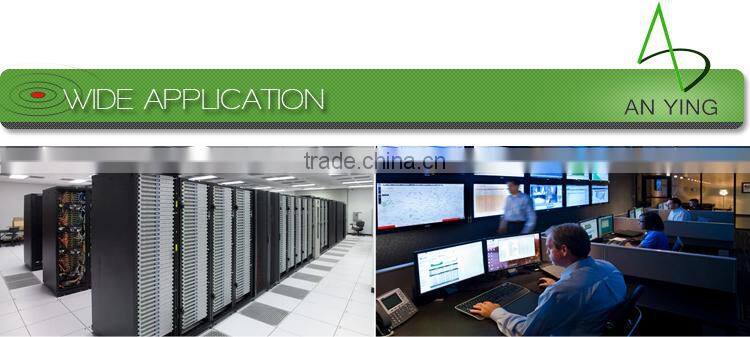

Data Center

Water damage is the most unknown environmental threat for a data center. Once the leakage occurs under the raise floor, it can flood electric wires, cause heavy financial losses especially for the banking and telecommunication systems. Early detection will avoid catastrophic damages.

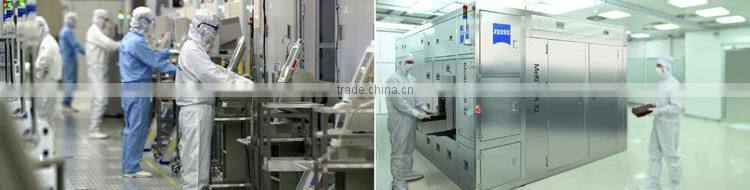

Wafer/Chip/Semiconductor Plants

The expensive equipment in these plants can be damaged once in contact with the liquid. More seriously, it will cause the production suspension.

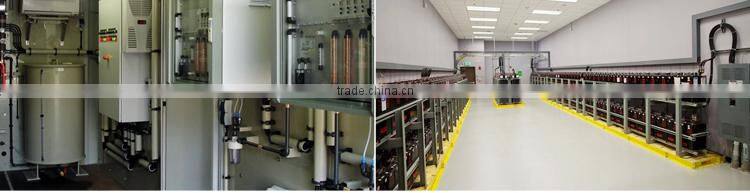

Technical Room-MER/UPS Room

These rooms are critical to assure the good functioning of the whole building. In case of the leakage water in contact with UPS would paralysis the backup system, causing the most serious data damage loss. This is the crucial environment in which water leakage is unacceptable.





Museum & Library

Precious artistic work, highly protected cultural relic, rare specimen demonstrated in the museum and books deposited in libraries are concerned by 100% safety. Protection of water leakage is one of these priorities.



AnYing @ sensing cables detect the presence of water at any point along their length. Installed with a AnYing locating module(A-LCIA),the cable senses water intrusion,triggers an alarm,and pinpoints the location.

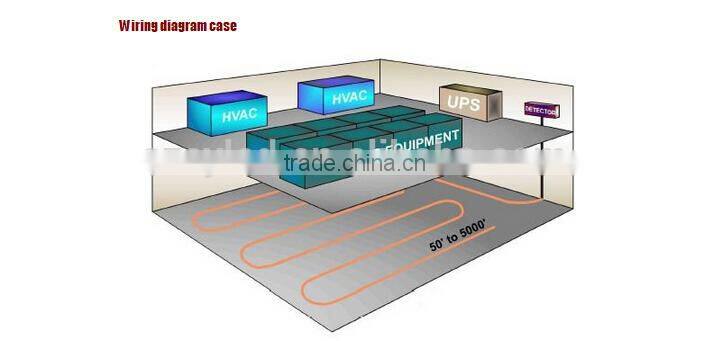

Distributed sensing

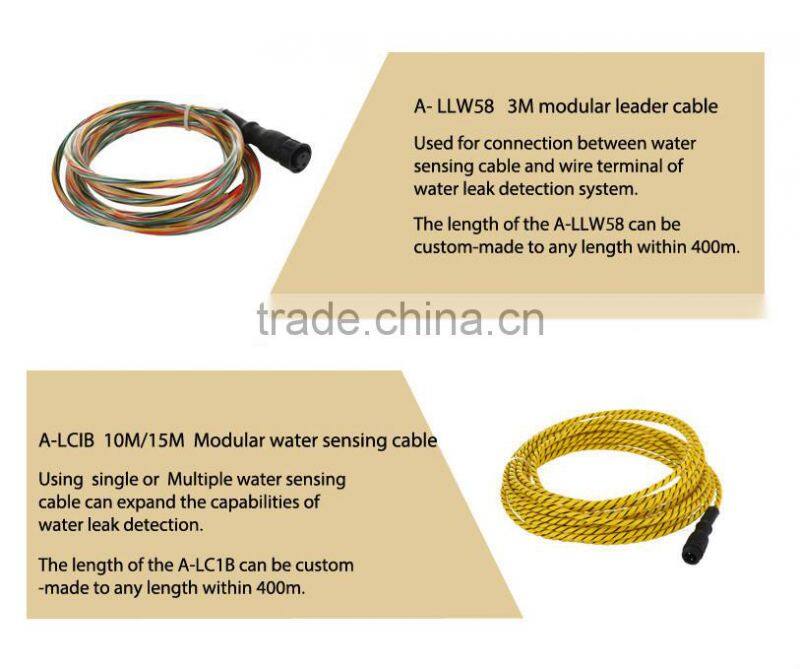

A-LC1B sensing cables provide distributed leak detection and location over a wide range of areas.

The cable is available in a variety of lengths to provide as much coverage as needed.

Design flexibility

A-LC1B sensing cable is supplied with factory-installed plastic connectors that plug together.

The cable is designed of a range of applications,including data center subfloors,telecommunication rooms

HVAC equipment locations,pipes,electrical vaults,storage areas,tanks,and roofs.

The cable is small,lightweitht,and flexible,allowing easy installation.The smooth design allows for quick drying.

Advanced technology

The conductive-polymer technology and fluoropolymer construction make  A-LC1B  sensing cable

mechanically strong and resistant to corrosion and abrasion.

The cable is constructed of two sensing wires,an alarm signal wire,and a continuity wire embedded in a fluoropolymer carrer rod.

The alarm module constantly monitors the sensing cable for continuity.

The rugged cable construction exposes no metal,and enables the cable to be reused even in corrosive environments.
