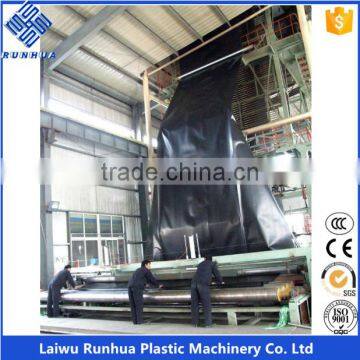

Water Tank Liners uv Blocked Hdpe Geomembrane Production Line

Water tank liners uv blocked hdpe geomembrane production line

Production Range

0.5-9 meters wide open 0.5-2mm thickness 1-4 layer co extrusion Smooth and Textured

Raw Materials

Test methods, test properties and testing frequency of HDPE, LDPE, LLDPE

smooth and textured geomembrane

Key Features

Barrel and screws for superior processing of resin mix giving excellent melt homogeneity ‚

Wave Saxton mixers for N2 dispersion on skin extruders ‚

MAC 30:1 smooth bore extruders for control of melt temperature ‚

1 to 4 layer configurations ‚

Dual motor 8 inch extruders ‚

Water cooled core extruder with dual input gearbox with twin AC motors ‚

Centrex die provides excellent gauge, thermal stability and low wetted surface area ‚

Nip assembly with two undercut rubber rolls and extra length slat collapsers ‚

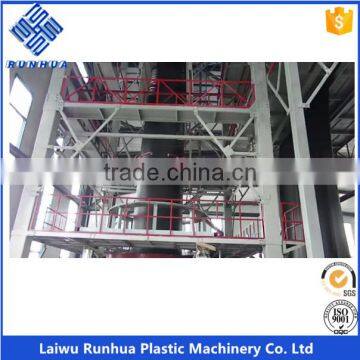

Special profiled tower rolls and web opening frame ‚

Options for torque or shaftless winding

Main consisted parts of machine

Extruder screw: 55-250mm Screw L/D ratio: 30:1   Die diameter: 500-3000mm Die gap: 0.8-2.5mm Bubble diameter BUR(blow up ratio): 1.2-1.8 Bubble cage Synchronous adjustment and calibration IBC cooling equipment Heat exchanges for air cooling, IBC fans controlled via frequenct converters Ultrasonic sensor for IBC control   Collapsing plate and Gusset board Hual-off Unit Nip roller & Idler(Guide) roller   Rewinder unit Second haul-off roller and winder roller width customized MD(Machine direction) TD(Transverse direction)

Application

Containment Liner Reservoir Lake Liner Landfill Basal Liners  Slurry Lagoon Liners Bund Liners  Reed Bed Liners Dam Liners Tunnel & Concrete Surface Liners Fish pond Liners Water Tank Liner Lake Liner   Civil Construction Aquaculture Roof Planting   Metallurgical and Mining   Architechture Construction

· Screw and barrel are designed to adopt the special compounding function to melt at high speed and homogeneous, also get greater output.

· Spiral flow channel die is designed to stabilize melt flow. Optional rotating device is chosen and helpful to eliminate gauge band on the web.

· Air/ water rings are alum-alloyed special design for providing excellent and stable cooling. The combination of air and water cooling rings for water output and air blow stably working together, which results in excellent film transparency, film surface is evenly and glossy.

· Take-off unit allows adjustment to the proper height and provides effective film cooling.

· A variety of winders including manual, 2 bobbin type, 4 bobbin type, back to back winder with computerized tension control for high quality film. Computerized speed control system of take-off and winding units will provide precise winding quality, won' t cause tensile or broken of film.

Rewinder

Film Unfolding way: bell and spigot frame

Film winding way: inverted triangular unfolding, fraction, two-stage traction, even four rollers winding
