Waterproof Plastic HDPE LDPE Geomembrane Liner Extrusion Machine
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
1mm 2mm Hdpe Dam Pond Liner Geomembrane Production Line
-
1mm Hdpe Impermeable Geomembrane Liner Line for Dam
-
UV 6m Wide Hdpe Pond Liners Geomembrane Production Line
-
6m Wide Hdpe Pond Liner Geomembrane Plant
-
UV Block 6m Hdpe Pond Geomembrane Liner Production Line
-
Waterproofing 6m Hdpe Pond Liner Geomembrane Plastic Making Machine
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | Other, HDPE ,LDPE,LLDPE,EVA,mPE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Shandong, China | |
| Brand Name | Runhua | Model Number | TM3500 | |
| Voltage | 380V/50HZ(can adjust) | Power(W) | 550000w | |
| Dimension(L*W*H) | 18x12x21 (m) | Weight | 10000kg | |
| Certification | CERTIFICATE: CE, ISO9001, FTA, CO, SGS, CIQ | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

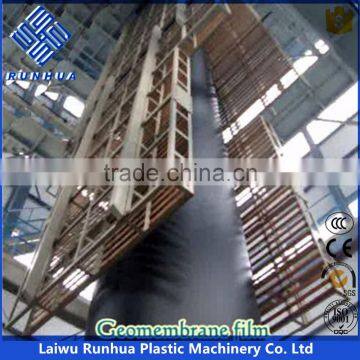

Waterproof ABC 3 layer blown type machinery for geomembrane
| |
Dear friends, thanks for visit our website, welcome.
Geomembrane film blowing machine are our company main product, we have 6 years export experience about this machine, we maintain the machine’s quality, that why our machine can sell very good in China, a lot geomembrane producer nearby us choose us without any hesitation. We can promise 1 year warranty for whole machine.
Our advantages | |
Technology | Details |

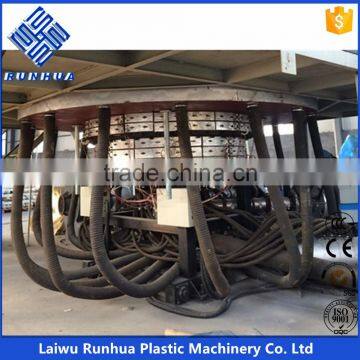

1. IBC internal bubble cooling system. | 1. Die head surface can reach mirror standard. |
2. Ultrasonic measurement and control technology. | 2. Guide roller with hard oxygen treatment. |

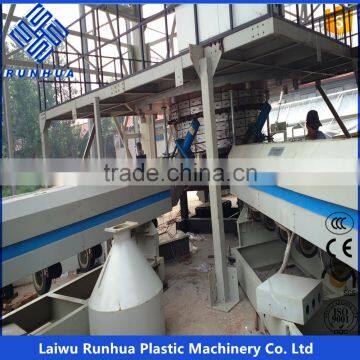

3. Synchronous traction technology. | 3. Extruder is designed by ourself, with good plasticizing capacity. |
We maintain every details. Our motto: Quality is first, customer is uppermost. | |
If you want to know more, please feel free to contact us, thank you.
Machine Type | 3FM2800 | 3FM3500 | 3FM5000-I | 3FM5000-II | 3FM5500-I | 3FM5500-II | |
Layer of laminating | 3 layers | ||||||
Raw material | LDPE,LLDPE,EVA,mLLDPE,HDPE | ||||||
Max. Output (kg/g) | 600 | 1000 | 1500 | 1800 | 2000 | 2300 | |
Extruder | 90/30x2 120/25x1 | 120/25x2 150/30x1 | 150/30x3 | 150/30x2 180/30x1 | 180/30x3 | 180/30x3 | |
Driving power (kw) | 90x2+110 | 110x2+200 | 250x3 | 250x3+280 | 280x3 | 315x3 | |
Diameter of die (mm) | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | |
Haul-off height (mm) | 19000 | 21000 | 24000 | 24000 | 27000 | 32000 | |
Traction speed (m/min) | 3~30 | ||||||
Layflat mode | Side gusset | ||||||
Geomembrane width (mm) | 5500 | 6300 | 7000 | 8000 | 9500 | 9500 | |
Geomembrane thickness (mm) | 0.3-2.4mm | ||||||
Total power (kw) | 750 | 950 | 1400 | 1550 | 1650 | 1900 | |
Overall dimension (m) | 16x9x20 | 18x12x21 | 19x11x25 | 20x13x25 | 20x15x27 | 22x22x33 | |
| |
| |
| |
Not all the usage can be listed.
Laiwu Runhua plastic Machinery Co., Ltd is a high technology enterprise which collects departments of Research& Development, Production, Sales and Service. We are specialized in plastic extruder, drawing machine, film blowing machine. Our engineers and experts have more than 20 years experiences.
Main products: Agriculture film machine, Geomembrane film machine, Packing film machine, Plastic wire drawing machine.
Our machine can prodcuce various plastic wires, plastic films. The max. width can reach 30 meters. Our machine could adopts 1-7 extruders ,can produce monolayer film and multi-layer film,can meet various needs.
Our motto: Quality comes first, Customer is the uppermost
Address: 123#, Longtan East Street, High-tech Zone, Laiwu city, Shandong Province
