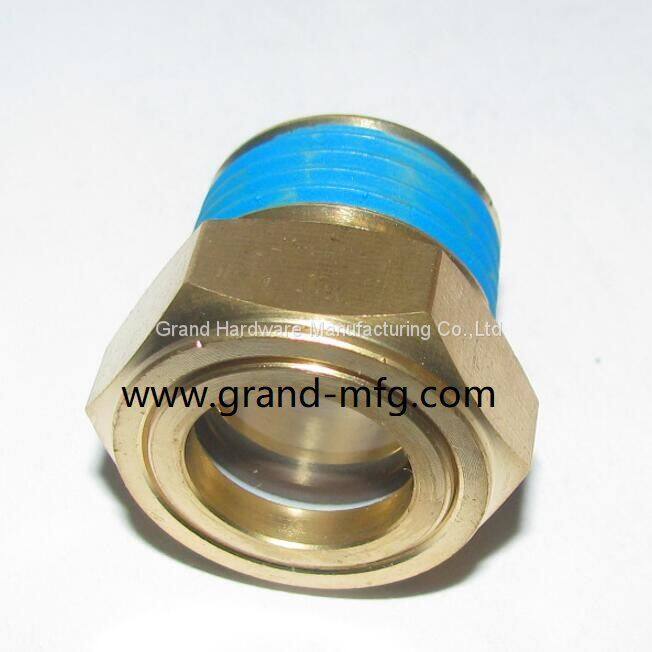

NPT 1/2 Inch Male Thread Coolant Sight Glasses Oil Level Gauge Indicator for Heavy Duty
- Ningbo
- T/T
- 25 days
You May Like
-
Polycarbonate Oil Sight Glass,BSP G Thread,Metric Thread Plastic Oil Levels
-
BSP G11/4 Compressor Speed Reducers Aluminum Liquid Oil Level Sight Glass Manufacturer
-
MNPT Thread 3/4 1 Inch Pump Carbon Steel Liquid Oil Sight Glass Plug Oil Level Gauge
-
BSP 1/2 ROUND OIL LEVEL SIGHT GLASSES CIRCULAR BRASS SIGHT GLASS
-
MNPT Thread 3/8 3/4 Compressor Oil Sight Glass for Pump Brass Oil Levels Indicator
-
Gasketed Compressor Oil Sight Glass With Borosilicate Glass and Stainless Steel Reflector
Product Details
| Brand Name | grand-mfg | Place of Origin | China | |
| Model Number | GM-HDN12 |
Product Description

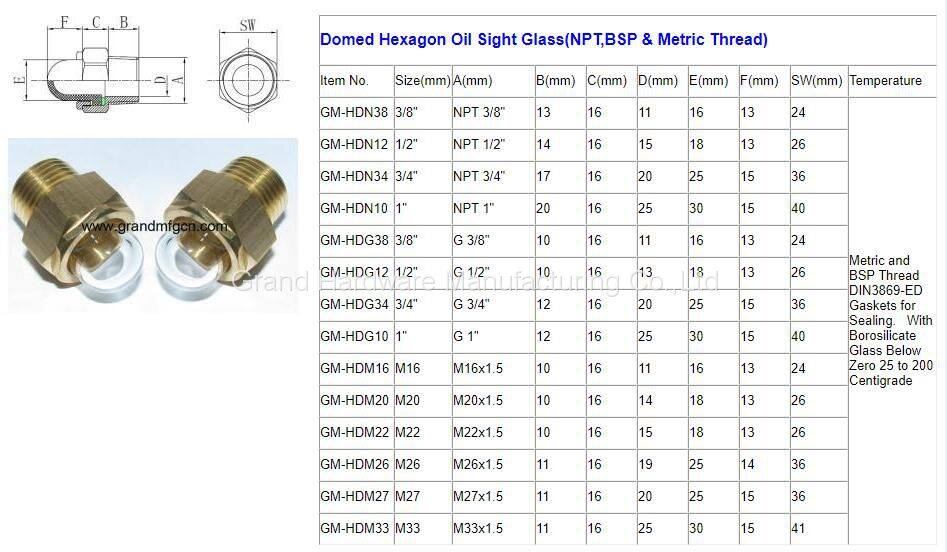

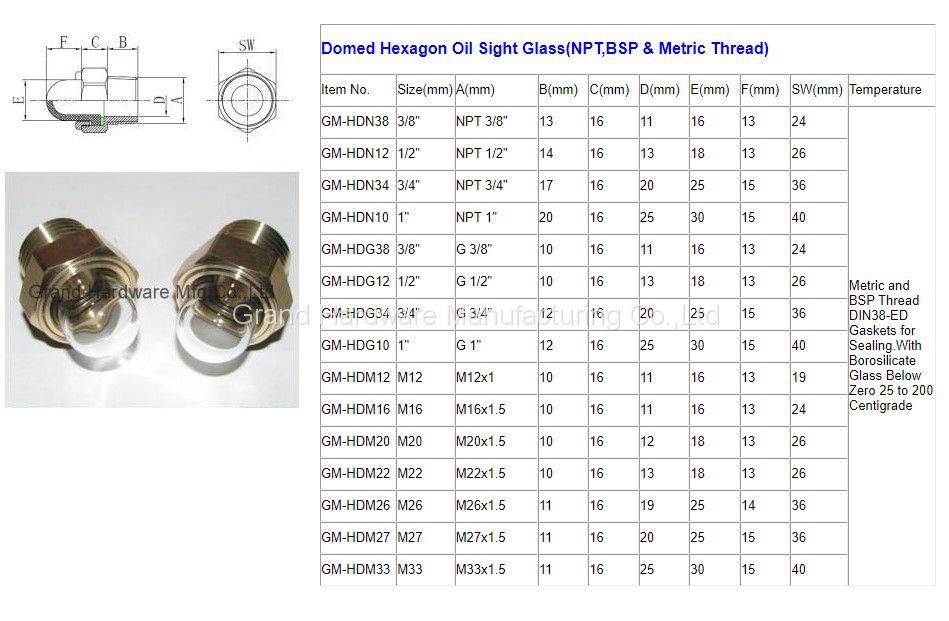

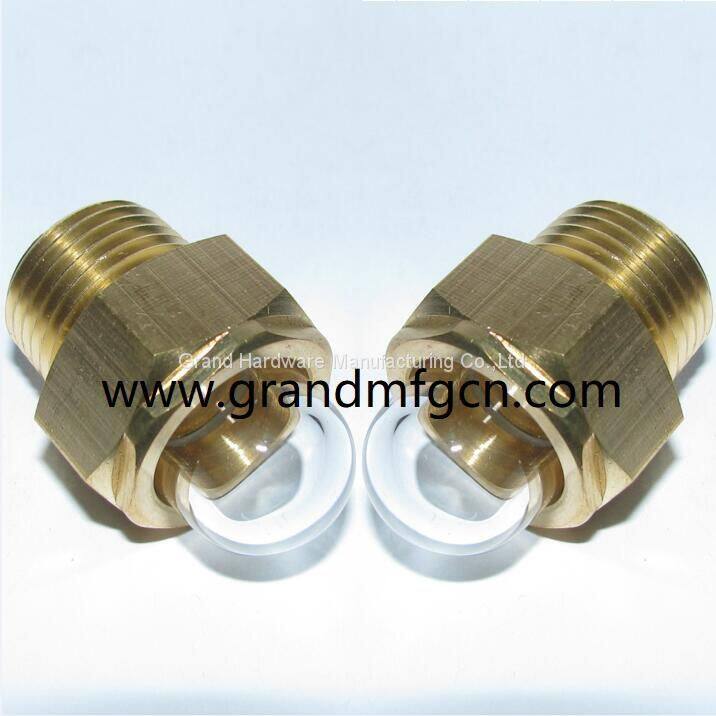

Domed shape oil sight glass, domed oil sight gauge, domed sight glass plug, domed sights gauge
Material
Body: Aluminum, Steel and Brass
O-Ring: Viton and NBR
Glass Thickness: 3mm
Glass Type: Borosilicate Glass
Resist Temperature Range: -30 Cent degrees to 200 Cent degrees.
Pressure Range: 5-10 Bar or 0.5MPa to 1 MPa.
Connections: NPTF, NPT, UNC, UNF, Metric and BSP (G thread)
Size:M10X1, M16X1.5,M20X1.5, ,M27X1.5,M33X1.5,
G 3/8,G 1/2,G 3/4,G 1 NPT 3/8, NPT 1/2,NPT 3/4,NPT 1
MOQ: 2000 Pcs each size
Delivery time: 20 days.
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.
Any demands just contact us or vist our GRAND-MFG website to get details.Thank you.
