rg6 tri shield coaxial cable
- shenzhen/shanghai/ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangxi, China | Brand Name | qunxing | |
| Model Number | coaxial cable | Type | Coaxial | |
| Application | Multimedia | Color | Black | |
| Packing | Coil | Outer Diameter | 0.1799 in | |
| Connector Color | Gold | Connector Type | RGB | |
| Shielding | Braid | Gender | Female-Female |
Product Description
Specifications
rg6 tri shield coaxial cable1.Conductors:CCS / copper / CCA
2.Insulation:PE-Polyethylene
3.Sheath:PVC-Polyvinyl Chlorid
rg6 tri shield coaxial cable
1.Conductors:CCS / copper / CCA
2.Insulation:PE-Polyethylene
3.Sheath:PVC-Polyvinyl Chloride
4.AL Shield

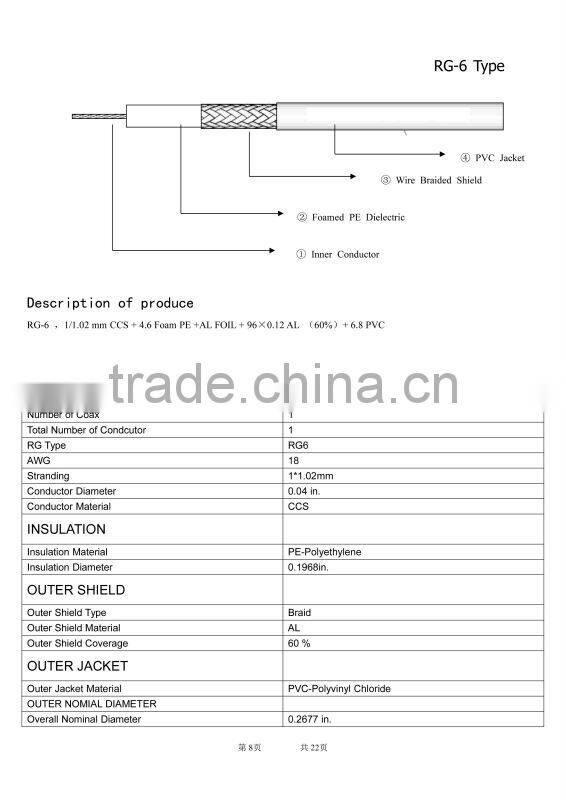

Description of produce
1.02mm CCS / copper / CCA + 4.57 Foam PE + Bonded AL FOIL + AL / COPPER /Tinned Copper /CCA Braiding + Al foil +6.95 PVC
Physical Dimensions
CONDUCTOR |
|
Number of Coax | 1 |
Total Number of Condcutor | 1 |
RG Type | RG6 |
AWG | 18 |
Stranding | 1*1.02mm |
Conductor Diameter | 0.04 in. |
Conductor Material | CCS / copper / CCA |
INSULATION |
|
Insulation Material | PE-Polyethylene |
Insulation Diameter | 0.1799 in. |
OUTER SHIELD |
|
Outer Shield Type | Braid |
Outer Shield Material | AL / COPPER /Tinned Copper /CCA |
Third Shield | AL FOIL |
OUTER JACKET |
|
Outer Jacket Material | PVC-Polyvinyl Chloride |
OUTER NOMIAL DIAMETER |
|
Overall Nominal Diameter | 0.2736 in. |
MECHANICAL CHARACTERISTICS |
|
Operating Temperature Range | -10°C----65°C |
EU RoHS Compliant(Y/N) | YES |

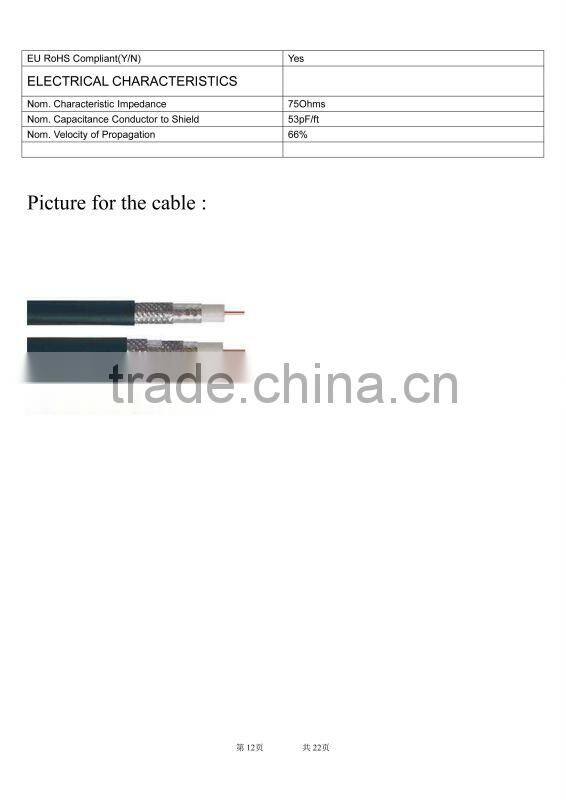

ELECTRICAL CHARACTERISTICS |
|
Nom. Characteristic Impedance | 75Ohms |
Nom. Capacitance Conductor to Shield | 53pF/ft |
Nom. Velocity of Propagation | 66% |
|
|
| |||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||
