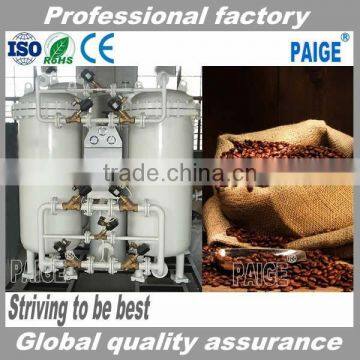

N2 Gas Generation Machine from AIR using PSA Technology

1.) Nitrogen flow: 1-3000Nm3/h.
2.) Nitrogen purity: 97-99.9995%.
3.) Nitrogen pressure: 0.05-1.0 Mpa.
4.) Dew point: from -60 to -45 degree celsius.


When the process adopts lifting air, oxygen and nitrogen have different diffusion rate and adsorptive capacity to separate oxygen from nitrogen on carbon molecular sieve(CMS). When air is compressed to 0.8MPa, air source enters in pressure-swing adsorption tower for separation after being purified through dry and oil-water separation process (filter). Oxygen molecules are diffused and adsorbed in carbon molecular sieve under pressure. Non-adsorbed nitrogen is discharged from outlet of adsorption tower. Oxygen is desorbed, discharged and purged in adsorption tower under depressurization. Moreover, adsorbent can be recycled.Paige brand.

More specifications,please let us know. I will send you details.For example it is following.
 1.Nitrogen Generator Solutions 2.Users' Manual and Maintenance Manual(With shipping)
Nitrogen Generator(Tower-type)

Reliable Parts

Air Dryer

Air Compressor

Air/Nitrogen Storage Vessel

Filter

Shipping and Packaging


More detail specifications,please contact us.Thank you so much.

1.) Food, Beverage, Cereal & Drug Industries: It’s suitable to use in gas-adjusting package and nitrogen(PAIGE) package of fruits, vegetables, flowers, tea leaves and puffed food, custard pie, milk bread, European-style egg roll, various cookies, farm products and local special products, such as rice, seed and chestnut, also kinds of drugs etc .
2.) Metallurgy: For anneal protection, agglomeration protection, nitrogenizing, furnace washing and blowing, etc. Used in fields such as metal heating treatment,powder metallurgy, magnetic material, copper process, metallic mesh, galvanized wire, semiconductor, etc.
3.)Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement, gas protection, product transport, etc. Used in fields such as chemical, urethane elastic fiber, rubber, plastic, tyre, polyurethane, biological technology, intermediate, etc.
4.)Electronic industry: For encapsulation, agglomeration, anneal, deoxidization, storage of electronic products. Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic porcelain, electronic copper tape, battery, electronic alloy material, etc.

  Quality Control

1.Abilities
Full Automation
All systems are designed for unattended operation and automatic Nitrogen demand adjustment.
Low Electric Energy Consumption
All systems are designed for Energy-Efficient.
Lower Space Requirement and Short installation period
The design and Instrumentation makes the plant size very compact, assembly on skids, prefabricated and supplied from factory. PAIGE Machinery has own PAIGE brand of PSA Nitrogen generation equipments.
Installation is very easy and convenient.
Fast Start-Up
Start-up time is about 30 minutes to get desired Nitrogen purity. So these units can be switched ON & OFF as per Nitrogen
Demand changes.
High Reliability
Very reliable for continuous and steady operation with constant Nitrogen purity. Plant availability time is better than 98% always.
Molecular Sieves Life
Expected Molecular sieves life is more than 10-years i. e. Whole life time of Nitrogen plant. So no replacement costs.
Simple operation and maintenance
All systems are designed by integrated solution for easy-operation and easy-maintenance.

2.Certification
