Home > Products > Industrial Machine > 5 axis 3 drilling 2 tufting machine/brooms toilet tufting drilling machine brush making machine

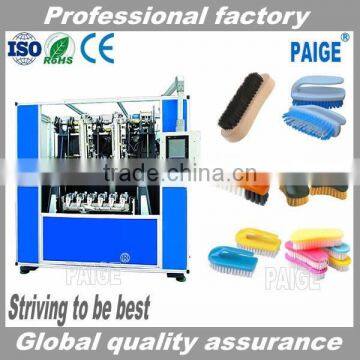

5 axis 3 drilling 2 tufting machine/brooms toilet tufting drilling machine brush making machine
USD $50,000 - $55,000
/ Set
1 Set(Min.Order)
- 10 Set / Sets per Month
- Shanghai
- T/T
You May Like
-
2017 New Type Low Price Hot Sellers Liquid Nitrogen Generator With High Purity For Sale
-
High Purified Liquid Nitrogen Generator With Superior Quality
-
Liquid Nitrogen Generator By PSA
-
JIANGYIN PAIGE Main Product----- Liquid Nitrogen Generator
-
Popular Durable Liquid Nitrogen Generator Plant
-
Promotional Classic Liquid Nitrogen Generator From
Product Details
| Condition | New | Application | Makng Brush | |
| Automatic Grade | Automatic | Production Capacity | 900Holes/min | |
| Place of Origin | Jiangsu, China | Brand Name | PAIGE | |
| Model Number | PG-CNC5A3H | Voltage | 3/380V | |
| Power(W) | 3KW | Dimension(L*W*H) | 2.5M*1.4M*1.98M | |
| Weight | 1500kg | Certification | ISO 9001 CE | |
| Warranty | 1 Year | After-sales Service Provided | Overseas service center available |
Product Description
Specification
Maximum production speed | 900holes/minute |
The maximum filament length | 240mm |
Dia. Of tufting holes | 3.0mm -6.0mm |
Machine Size | 2.8m*1.85m*2.2m (L*W*H) |
Power Consumption | 5000W |
Driving Motor | AC Servo Motor |
Power Supply | Three-phase 380V |
Weight(gross weight) | 3500kg |
Product Sample
Technology
PG-CNC5A3H 5 Axes 3-Head Brush Drilling And Tufting Machine Feature:
| Model | PG-CNC5A3H 5 Axes 3-Head Brush Drilling And Tufting Machine |
| NO. of axis | 5-axis |
| Qty of heads | 3 Heads,2 drilling heads and 1 tufting head. |
| Setting of Worktable | high-precision straight-line rail and ball screw,steady and durable. |
| Material of Brush Handle | Polyethylene, polystyrene, return materials, wood |
| Material of filaments | PP,PET,PVC,STEEL WIRE |
| Diameter of filaments | 0.08mm-1.2mm |
| Application | To make varieties of toilet brushes and radial brushes |
| The length of filament(outside the hole) | 15-110mm |
| Diameter of hole | 3.0mm-8.0mm |
| Colors of Brush Filaments | double colors |
| Maximum Drilling and tufting Speed | 450 holes/minutes |
| Max Speed | 15000n/min |
| High Speed Motor | Delta High-Speed Motor |
| AC motor | Delta Brake Motor |
| Type&Brand of Driver/Motor | Delta servo motor by default, can adopt some brand motor&driver requested by users. |
| Adjust Speed | Frequency-conversion stepless-adjustable speed |
| Replaceable Fixture | FMS type. It can be easily changed to make other kinds of brushes. |
| Head mode | Anchor or Staple |
| Programme Storage | Store 2000 programme,each can imput 100 thousand processing data. |
| Program System | CNC system,high precision,stability and efficiency |
| Dimension(L*W*H) | 2500mm×1400mm×1980mm |
| Gross weight | 2700kgs |
| Power | AC three phases 380, 50Hz |
| Total power | 3KW |
| Compressed Air Pressure | 0.6-0.8Mpa |
Product Show
