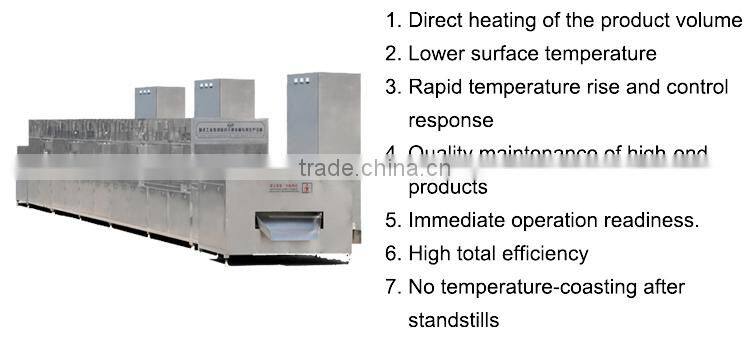

New Technology Microwave Turmeric Drying Machine

As compared with conventional drying methods, which are heating from the outside to the inside by heat conduction, microwave show so-called volume heating with the following advantages:

• a temperature gradient directed towards the surface, i.e. temperatures inside are higher than outside, giving rise to a higher partial pressure that drives the evaporating liquid to the surface
• consequently, the superficial layer does not dry up completely and the surfaces remain permeable
• the liquid evaporating inside the product is emitted through the porous structure of the solid material’s macro-capillary system, resulting in a high drying velocity
• the heating of water and most organic solvents occurs selectively - due to the greater dielectric losses of water as compared to the product to be dried
• swift and thorough drying of moist products with low thermal conductivity
• static drying of thick layers without frictional losses
• high total efficiency of energy application
• high-speed control of the energy transport
• short processing times, i.e. suitable for automated manufacturing

1.What is microwave?

Microwaves are a form of electromagnetic energy with frequencies between 300 MHz and 300 GHz, generated by magnetrons under the combined force of an electric and a magnetic field perpendicular to each other.

2. What is the advantage of microwave equipment compare to Conventional equipment?

Conventional is a surface drying and sterilization method, which  is not only slow, but also non-uniform with the surfaces, edges and corners of mushrooms or fungus. The imperfect drying and sterilization will cause product rejections, waste energy and extend process time.

Microwave is a direct method of drying and sterilization. Energy is transferred through the material electro-magnetically, not as a thermal heat flux. Therefore, the effect of drying and sterilization is uniformity and process time is short.

Microwave mushrooms sterilizer and dryer could completely preserve the original color, fragrance, nutrition and other properties of spices.

3. How about safety?

Using scientific structure and patented suppression system, BODA industrial microwave drying machine no threat of electromagnetic radiation to the health and safety of equipment operators.

4.What about maintenance?

In addition to downtime for cleaning and inspection, conventional sterilizers and heat exchangers need periodic servicing with an expensive inventory of parts and a highly trained labor force.  For microwave dryer and sterilizer, the only  part that requires maintenance is the magnetron.  In the event of a malfunction or misuse through incorrect operation, this can easily be replaced in less than thirty minutes.  Generally, BODA recommends that the magnetron of industrial microwave dryer and microwave sterilizer be replaced annually or after 8,000 hours of operation, whichever is sooner.

WHY CHOOSE US?
1:The first listed company for microwave industry.
2:Equipment material: Full steel construction, durable
3:Accessory brand : SIEMENS and other High quality brand
4:Technical support for your installation, operation and maintenance.
5: Lifetime warranty
6: Fast delivery
7:Provide with CCC CE ISO certificate
8: we can customize different dimension and Specification according to the requirements of customers.
If you are interested in our machine,please contact us for more information (such as catalogue,video,prices,etc).

If you are interested in it,plz free to contact me.
1:let me know what kind of product do you need to dehydrate?
2, what's estimated initial moisture before drying? what's the end moisture level demand?
3, how about the drying temperature and sterilizing temperature demand?
4, what type of dryer/sterilizign machine do you prefer? batch type or continuous type(belt conveyor type)?
Hope to get your inquiry.
