2014 NEW CD1 1-20 Ton 3 Phase Elevator Electric Wire Rope Hoist Price

Specifications

2014 NEW CD1 1-20 ton 3 phase elevator electric wire rope hoist price

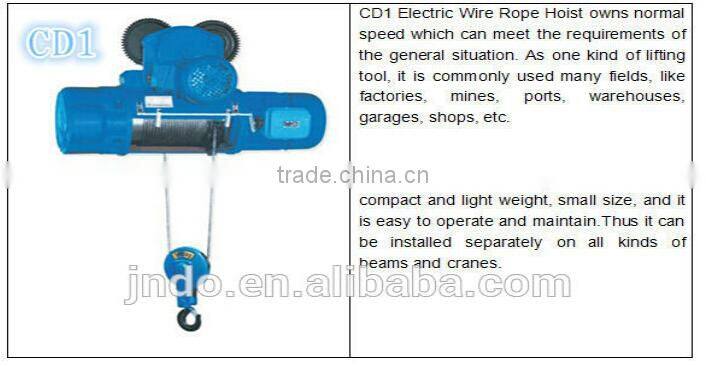

CD1 Electric hoist has only normal speed ,which can satisfy the general working  requirement .

MD1 Electric hoist has one more hoisting motor and slow speed actuating device ,which make the model have two speeds.When it works slowly ,It can satisfy the precise task such as precise working of loading and unloading ,sand to break-in.

   Key Specifications/Features:

• Comply with EN-11492-2 standard and patent design

• CE/GS/EMC/RoHS approval

• Upper and lower limit function

• Anti-reverse winding function

• The emergency stop switch

• Thermal protection terminal

• Protection class IP54

• Insulation class B

• Group of mechanisms M1

• Work Duty: S3-20%-10min

• Rated Volt: 220/230V ~ 50Hz

• Rated Current: 2.2A

• Input Power: 500W

• Lifting Weight: 125kg(Single-line), 250kg(Double-line)

• Lifting Height: 18m(Single-line), 9m(Double-line)

• Lifting Speed: 8m/min(Single-line), 4m/min(Double-line)

• Diameter of wire rope: 3.0mm

• Tensile strength of wire rope : 1870N/mm²

Primary Competitive Advantages:

• Safety Approval

• OEM Capability

• Production Capacity

• Reliability and Reputation

• Price and Service

 Logistic Information:

• Packing pattern: 1pc per color inner box, 2pcs per master carton

• Packing Dimension: 46.5x36.5x16cm

• G.W./N.W.: 22/21kg

• Qty /1x20’FCL: 1700pcs

   Payment Details:

• Payment terms: L/C at sight or T/T

• MOQ:10SET

  Delivery Details:

• FOB Ports: QINGDAO port

• Lead time: 30 to 50 days
