Home > Products > Vacuum sintering furnace > High temperature 2500 C vacuum induction sintering furnace

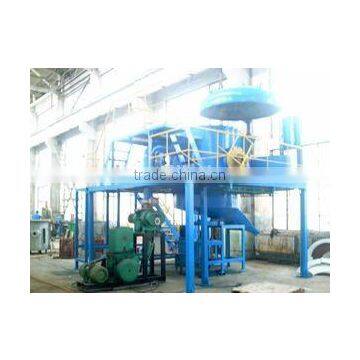

High temperature 2500 C vacuum induction sintering furnace
- china
- T/T L/C D/P D/A
You May Like
Product Details
| Condition | New | Type | Induction Furnace | |
| Usage | Sintering Furnace | Place of Origin | Hunan, China | |
| Brand Name | Shuang Ling | Model Number | SLG50-630 |
Product Description
High temperature 2500 C vacuum induction sintering furnace
1. Main application
It is suitable for sintering copper tungsten alloys, aluminum Ni-Co permanent magnet, carbon fiber graphitization, carbon carbon composites, silicon carbide products, tungsten molybdenum and other alloy material in vacuum or atmosphere .Also it can be used for other metal materials heating treatment and deposition.
2.Features
The system use reasonable vacuum unit, it is suitable for vacuum sintering.
Intelligent temperature controller, configuration can be installed freely 148 sections. And the euipment has high precision temperature control heating curves, temperature can reach automaticly according to procedures
The equipment use high efficiency power and induction coils, with high heating speed and high temperature.
Furnace atmosphere is optional and uniformity.The furnace can be filled with hydrogen, nitrogen and argon, etc
We can add unglued devices according to the craft.
3.Reference specifications
Model |
Power (KW) | Heating area size Diameter*height (mm) | Temperature (°C) | Limit vacuum (pa) | Rate of pressure rising (Pa/min) | Frequency (HZ) |
SLG50 | 60 | 150×200 | 2500 | 0.0047 | <0.15 | 8 |
SLG100 | 100 | 250×400 | 2500 | 0.0047 | <0.15 | 6 |
SLG160 | 160 | 360×750 | 2500 | 0.0047 | <0.15 | 4 |
SLG200 | 200 | 450×900 | 2500 | 0.0047 | <0.15 | 4 |
SLG300 | 300 | 600×1200 | 2500 | 0.04 | <0.15 | 4 |
SLG400 | 400 | 680×1200 | 2300 | 0.04 | <0.15 | 2.5 |
SLG500 | 500 | 800×1500 | 2300 | 5 | <0.15 | 2.5 |
SLG600 | 600 | 600×2500 | 2300 | 5 | <0.15 | 2.5 |
SLG630 | 600 | 850×2600 | 2300 | 5 | <0.15 | 2.5 |
Other specification can be made according to the requirement
