Vacuum melting furnace with high vacuum
- 1000 Set / Sets per Month
- Canton China
- T/T L/C D/P D/A Credit Card
You May Like
-
china factory vacuum induction smelting furnace/1800c
-
atmosphere vacuum smelting furnace
-
MF Vacuum induction furnace for metal melting and sintering
-
Atmosphere vacuum smelting furnace/vacuum industrial smelting furnace
-
High temperature vacuum induction smelting furnace
-
Vacuum furnace with best vacuum
Product Details
| Condition | New | Type | Other, Induction Furnace, vertical and horizontal | |
| Usage | Other, Vacuum induction melting furnace, smelting iron ,nickel ,alloy and magnetic materials | Place of Origin | Hunan, China | |
| Brand Name | ZZSL | Model Number | ZLP-5/300 | |
| Power(W) | 50-300kw | Weight | 2000-5000KG | |
| Certification | CCC | After-sales Service Provided | Overseas service center available |
Product Description

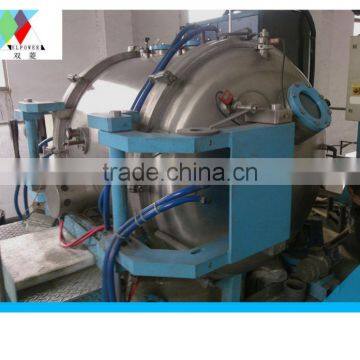

Vacuum induction melting furnace
1.Large capacity
2.Highest temperature1800°C
3.Smelting all kinds materials
4.Simple operation
1.Application
The vacuum induction smelting furnace is used for smelting and precision casting iron ,nickel , high temperature alloy ,other precision alloy,and magnetic materials.
2.Features
(1).The heating temperature is high(1800°C), fast smelting speed.
(2).Other elements can be added under vacuum conditions during smelting process.
(3).Compact structure, rational layout, simple operation.
(4).Furnace type vertical and horizontal .
3.Equipment composition
The furnace, road cover, sensors, melting crucible, insulation materials, charging box, furnace cover lifting mechanism, vacuum units, IF power supply, electric control cabinet, temperature measurement device and so on.
Model | Rated capacity (KG) | Limit vacuum (Pa) | Highest temperature (°C) | Power (KW) | Power frequency (Hz) |
ZLP-5 | 5 | 6.67×10-3 | 1800 | 50 | 8000 |
ZLP-10 | 10 | 6.67×10-3 | 1800 | 50 | 4000 |
ZLP-25 | 25 | 6.67×10-3 | 1800 | 100 | 2500 |
ZLP-50 | 50 | 6.67×10-3 | 1800 | 100 | 2500 |
ZLP-100 | 100 | 6.67×10-3 | 1800 | 160 | 2500 |
ZLP-200 | 200 | 6.67×10-3 | 1800 | 250 | 2500 |
ZLP-300 | 300 | 6.67×10-3 | 1800 | 300 | 1000 |
Other specification can be made according to the requirement
Power supply
