High and medium frequency quenching equipment

 High and medium frequency quenching equipment

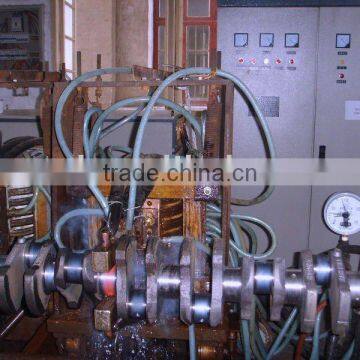

This equipment is mainly used all kinds of crankshaft surface hardening processing, the structure is simple, the operation is convenient wait for a characteristic.

High and medium frequency quenching equipment

1. Application

By the cooperation of quenching machine tool and high and moderate frequency induction heating power supply , adapt quenching process, often used for gears, bearings, axle, valve, cylinder and all kinds of car parts and machinery parts such as quenching and tempering treatment.

2. Main technical parameters

Output power  20-750KW

Output frequency  2.5-500KHZ

Quenching depth  0.3-15mm

The highest using temperature  1250 °C

Output voltage  20-800V

Quenching materials  steel, iron

Quenching shapes  various shapes

Up-down materials method  Automatic and manual

Structure  vertical or horizontal

We will match digital system according to various quenching process configuration.

Quench equipment types:

External circular quenching series, for all kinds of shaft, rods, tubes, circular parts (such as bearings, valve, etc) whole or local quenching of outside round face

Semi-atuo quenching series, for all kinds of tubing, mechanical parts inside circles whole or local quenching (such as cylinder liner, bushings, etc.)

End, plane quenching series, the end of the mechanical parts and plane parts of the whole or local quenching, (such as machine slideway, linear slide rail, etc.)

Alien parts quenching series, heterogeneous parts surface integral or local quenching (such as car crankshafts, camshaft, etc.)

Super-large parts of quenching series, the quality of larger, heavier super-large parts whole or local quenching (such as Marine gear, dam locks rails and large oil pipelines, roll, etc.)
