Product Details
Condition | New | Application | PET Bottle Recycling | |
Automatic Grade | Automatic | Production Capacity | 300-2000kg/h | |
Brand Name | saiou | Model Number | SO - plastic PET recycling machine | |
Voltage | 380V 50HZ | Power(W) | 200KW | |
Dimension(L*W*H) | 30m*2m*3m | Weight | 8-15tons | |
Certification | CE ISO | Warranty | 1 Year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
waste plastic pet bottle recycling line
This PET recycling plastic machine line is composed of lable separator, crusher, cold & hot washer, dewaterer,dryer system, hopper etc.
characteristic :
1. High automation level to reduce production cost on labor and ensure high output.
2. Control system is convenient to operate and monitor.
3. All parts contacting with material and water are made of high-quality 304 stainless steel.
4. Ideal impurity removal effect.
The process of this automatic production line for waste plastic pet bottle recycling line is as following:
Belt conveying --- label remover--- selecting table---Belt conveying --- crusher---firction washing machine ---washing bank--- screw feeder --- Steam boiler---screw feeder--- horizontal washing device --- washing tank---screw feeder---dewatering machine---pipeline conveyer drying system---air drying storage.

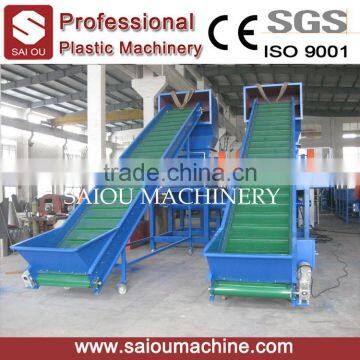

BELT CONVEYER
Motor power: 1.5kw.
Mobile truckle installed at bottom, so it can move freely.
SELECTING TABLE
Motor power: 1.5kw.
BELT CONVEYER
Motor power: 1.5kw.
CRUSHER WITH WATER
Motor power: 37kw.
Rotational blades: 10pc.
Fixed blades: 4pc.
With emergency operating switch.
FIRTION WASHING MACHINE
Motor power: 11kw.
Screw diameter: Ф450mm
The parts contacted with raw material are made of 304 stainless steel.
HORIZONTAL WASHING DEVICE
Motor power:7.5kw
Effective length: 3000mm.
WASHING TANK
Motor power:2.2kw
Material:304 stainless steel(exclude bracket)
HOT WASHER
Motor power: 7.5kw
Using steam to heat the water.
PIPELINE CONVERYER DRYING SYSTEM
Heating Power: 54kw
Heating method: electric heating
The parts contact with raw material is made of stainless steel.
advantage:
PET bottle recycling plastic machine is one of the feature products of our company, clients using this production line all over the world, to recycle PET bottles, to better our life and city. The last moisture of PET flake can below 3%
Working principle: This PET bottle recycling plastic machine, separate label by label remover, crush bottle into flakes, remove the earth and sand though friction washer, hot washer, and washing tank,dewater and dry to get clean PET flakes.
Capacity of our PET bottle recycling plastic machine:from 300kg/h to 2000kg/h, we can accord to customer’s requirements to design the suitable plastic machine.
Pre-Sales Service
Inquiry and consulting support.
Sample testing support.
View our Factory.
After-Sales Service
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
Our Services
warranty waste PET bottle flake recycling plastic machine
If the equipment fails due to the quality of the machine during one year, we will provide replacement and the repair Free of Charge. after One Year customer must pay for Spare Parts, Saiou will provide long-term technical assistance.Workers must operate the machines according to the design of the machine.
Saiou Machinery will not be responsible for accidents which are caused by improper operation of workers.
Payment:
30% TT is down payment as deposit, and 70% is paied before shipment.
30% TT is down payment as deposit, and 70% by irrevocable L/C at sight.
100% irrevocable L/C at sight.
Zhangjiagang Saiou Machinery Co., Ltd. is an enterprise specializing in researching and producing plastic machinery.
SAIOU MACHINERY was set up since 2001, with various quality, competitive advantage products, and good after-sale service. we are the market leader in plastic machinery market. Our products are very popular with people at home or abroad, So we have ever been exported to many countries, such as, Canada, Mexico, Chile, Egypt, Slovakia, Dominican Republic, Indonesia, Bulgaria, Saudi Arabia, Libya etc.
Advanced equipment, mature techniques and strict testing system guarantee high quality products. Saiou Machinery trust our principle of “QUALITY IS OUR CULTURE” Saiou would like to cooperate with you for a longer business in near futures..
