Waste PP PE film plastic bags recycling plant

Product description of bag film plastic recycling machine :

l  Washing Capacity: 150-2000kg/h

l  Humidity< 3-5%

l  To wash plastic films, agricultural films, shopping bags, etc.

l  ISO9001 and CE certification

l  The whole production equipment is researched, design and manufactured by our company, integration of Europe technology, it has features as high efficiency, working stable, low humidity content(less than 5%). We use good quality on our machine (SUS-304, more than 3mm thickness) ensures whole production equipment long service life time.

Usage of film plastic recycling machine

l  Our Film washing and recycling machine could deal with waste plastic such as plastic bags, agriculture film, woven bags, plastic package products etc. The whole production line is surely of standard and high quality with CE certification and ISO 9001.

Advantages of bag film plastic recycling machine

l  The parts which are contacted with water or raw material are made of SUS304 stainless steel, thickness more than 3mm, to ensure long service time.

l  World famous Electronic & Mechanical components, such as NSK or SKF bearings, SIEMENS contactor, Omron temperature controller, ABB inverter.

l  The whole production line with CE safety certification, and ISO9001 certificate.

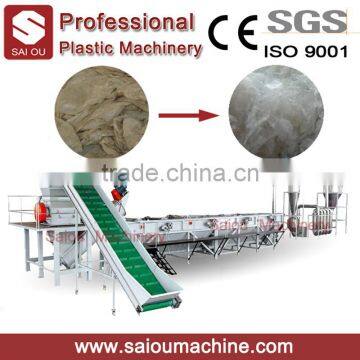

Pictures of Waste PP PE film plastic bags recycling plant

Film plastic recycling machine's belt

Film plastic recycling machine's crusher and friction washing machine

Film plastic recycling machine's washing tank and pre-dewatering machine

Film plastic recycling machine's dewatering machine

Film plastic recycling machine's drying systerm

 Main working of Film Plastic recycling machine

Belt conveyer- crusher (with water) - scrubbing machine (friction washer) -film floating tanks - screw feeder - centrifugal dewatering machine – Air cyclone drying system - storage hopper.

l  We can design a complete films washing line according to your request.

1. Belt conveyor: Convey material to next process.

2. Crusher: Crush the materials to flakes of 15mm (two series: one for PET, one for PP/PE)

3. Friction washer: Surface clean the materials (two series: one for PET, one for PP/PE), and transport material to next washing equipment.

4. Float Washing tank: For separation of the flakes with a specific density of <1g/cm^3 from >1g/cm^3 or in contrast to separate the flakes with a specific of > 1g/cm^3 form <1g/cm^3 (PET >1g/cm^3 and PP/PE <1g/cm^3)

5. Screw feeder: transport material and as well as for rub them for surface cleaning.

6. Dewatering machine: for mechanical surface drying of the material flakes with rotating roller (two series: one for PET, one for PP/PE)

7. Air cyclone drying system: Using stainless steel “U” type pipeline and cyclone silo to dry the material to the necessary residual level for downstream material processing.

8. Cyclone silo: Storage for final products.

 Processing raw material of film plastic recycling machine
