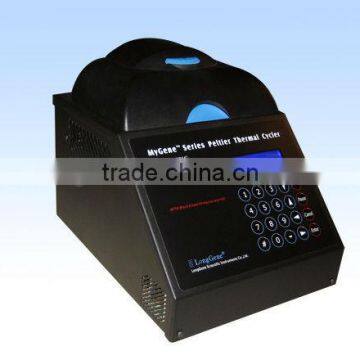

MG25+ MG96+/MG48+ MG96L Peltier-based PCR Machine

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port SHANGHAI OR NINGBO
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	REIGN
Model Number	MG25+ MG96+/MG48+ MG96L

Product Description

Specifications

1. Compare PCR product
2. Thermal Cycler
3.Multi-purpose Series

Model	MG25+
Block Capacity	25wells×0.2ml+16wells×0.5ml
Technology	Peltier-based
Display	Large-size Blue LCD
	Temperature
Block Temperature Range	0°C~99°C
Max. Heating Rate	3°C/s
Max. Cooling Rate	2°C/s
Temperature Uniformity	≤±0.3°C
Temperature Accuracy	≤±0.3°C
Display Resolution	0.1°C
Mode of Temperature Control	Sim-tube & Block mode
Ramping Rate Adjustable	0.1°C ~ 3°C
	Programming
Max. no. of programs	125 Typical Programs
Max. No. of Cycle	99
Time Increment/Decrement	1~60s Long PCR available
Temp. Increment/Decrement	0.1~10.0°C Touchdown PCR available
Auto Pause	Yes
Auto Restart	Yes
Hold at 4°C	Yes, Forever
Running Status Display	Yes
	Heated Lid
Heated Lid Temperature	105°C
Height of Heated Lid	Stepless Adjustment
Auto Shut-Off	When Block Temp. is below 30°C or after finish running
	Other Features
Power Supply Range	Wide Range Power Supply 175V ~ 275V,50-60Hz
Power Consumption	Max.:350W
Dimension(L×W×H)	267×220×253mm
Net Weight	6.5kg

Model	MG48+
Block Capacity	48wells×0.2ml+48wells×0.5ml
Technology	Peltier-based
Display	Large-size Blue LCD
	Temperature
Block Temperature Range	0°C~99°C
Max. Heating Rate	3°C/s
Max. Cooling Rate	2°C/s
Temperature Uniformity	≤±0.2°C
Temperature Accuracy	≤±0.2°C
Display Resolution	0.1°C
Mode of Temperature Control	Sim-tube & Block mode
Ramping Rate Adjustable	0.1°C ~ 3°C
	Programming
Max. no. of programs	125 Typical Programs
Max. No. of Cycle	99
Time Increment/Decrement	1~60s Long PCR available
Temp. Increment/Decrement	0.1~10.0°C Touchdown PCR available
Auto Pause	Yes
Auto Restart	Yes
Hold at 4°C	Yes, Forever
Running Status Display	Yes
	Heated Lid
Heated Lid Temperature	105°C
Height of Heated Lid	Stepless Adjustment
Auto Shut-Off	When Block Temp. is below 30°C or after finish running
	Other Features
Power Supply Range	Wide Range Power Supply 175V ~ 275V,50-60Hz
Power Consumption	Max.:500W
Dimension(L×W×H)	315×240×275mm
Net Weight	9.8kg

Model	MG96G
Sample Capacity	96wells×0.2ml+77wells×0.5ml
Technology	Peltier-based
LCD Display	Large-size Blue LCD
	Gradient
Gradient Accuracy	≤±0.3°C
Column Uniformity	≤±0.3°C
Gradient Range	30°C~99.9°C
Temperature Differential Range	1°C~30°C
Gradient Capacity	12 Columns(Vertical)
	Temperature
Block Temperature Range	0°C~99°C
Max. Heating Rate	3°C/s
Max. Cooling Rate	2°C/s
Temperature Uniformity	≤±0.2°C
Temperature Accuracy	≤±0.2°C
Display Resolution	0.1°C
Mode of Temperature Control	Sim-tube & Block mode
Ramping Rate Adjustable	0.1°C ~ 3°C
	Programming
Max. number of Programs	125 Typical Programs
Max. No. of Cycle	99
Time Increment/Decrement	1~60s Long PCR available
Temp. Increment/Decrement	0.1~10.0°C Touchdown PCR available
Auto Pause	Yes
Auto Restart	Yes
Hold at 4°C	Yes, Forever
Running Status Display	Yes
	Heated Lid
Heated Lid Temperature	105°C
Height of Heated Lid	Stepless Adjustment
Auto Shut-Off	When Block Temp. is below 30°C or after finish running
Power Supply Range	Wide Range Power Supply 175V ~ 275V,50-60Hz
Power Consumption	Max.:500W
Dimension(L×W×H)	315×240×275mm
Net Weight	9.8kg
Additional In-Situ Function	A set of additional in-situ plate available for In-situ PCR experiments.

Model	L96G/Y (Former Model: MGL96G/Y)
Block Capacity	96wells×0.2ml+77wells×0.5ml
Heating and Cooling Technology	Newest Generation Peltier-based Technology
Sample Capacity	0.2ml PCR tubes,0.5ml PCR tubes,Strips, 96wells PCR plate, In-situ Plate
LCD Display	5.7" graphical color display of protocols (320×240 pixel, 256 color)
Language	Bilingual:English and Chinese
USB flash drive	Unlimited with USB flash drive expansion
Communications	USB2.0 and RS232
Additional In-Situ Function	Available for 4 slides in one time
	Temperature
Block Temperature Range	0°C~100°C
Max. Heating Rate	4°C/ (s)
Max. Cooling Rate	3.5°C/(s)
Temperature Uniformity	≤±0.2°C(30 sec after reach Temperature point set)
Temperature Accuracy	≤±0.2°C(35°C-100°C)
Display Resolution	0.1°C
Mode of Temperature Control	Sim-tube & Block mode
Ramping Rate Adjustable	Yes
	Gradient
Gradient Accuracy	≤±0.3°C(35°C-99.9°C)
Column Uniformity	≤±0.3°C(30 sec after reach temperature point set)
Gradient Range	30°C~99.9°C
Temp. Differential Range	30°C Max. 30°C
Gradient Capacity	12 Column(Vertical)
	Programming
Max. number of programs	Max. 120 programs onboard,Unlimited storage of protocols with USB flash drive
Max. Step	30 Steps, multiple nesting cycle available
Max. Cycle	100 Typical Cycles (multiple nesting 60000 cycles)
Time Increment/Decrement	1~120 sec,Long PCR available
Temp. Increment/Decrement	0.1~10.0°C,Touchdown PCR available
Auto Pause	Yes
Auto Restart	Yes
Hold at 4°C	Yes, Hold Forever
Running Status Display	Yes
Real Time Display	Yes, Battery Buffered
	Heated Lid
Height of Heated Lid	Steplessly Adjustable Lid, accomodates a wide range of PCR tubes and plates
Heated Lid Temperature	30°C~105°C adjustable
Auto Shut-Off	When Block Temp. is below 30°C or after finish running
Power Supply Range	Wide Range Power Supply 175V ~ 275V,50-60Hz
Power Consumption	Max. :600W
Approvals	ISO 9001:2000, CE
Dimension(L×W×H)	335×240×270mm
Net Weight	9.8kgs
