Hot Sale! ! ! DTH Hammer Drill Bits of Power Tools for Mining
USD $200 - $850
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- Qingdao
- T/T Credit Card PayPal
You May Like
-
Chinese High Quality API Oil Drilling Crown Block
-
Oil Drilling Rig Crown Block With China Supplier
-
API Oil Well Crown Block Drilling Rig Good Price Factory
-
API Spec 4F Drilling Rig Crown Block
-
Oil Drill Crown Block TC Series For Drilling Rig
-
High Quality Crownblock Used On Oil And Gas Well Drilling Rigs
Product Details
| Brand Name | HF | Model Number | GL | |
| Type | Other, dth hammer, High Quality DTH Hammer | Machine Type | Drilling Tool | |
| Certification | AISI | Material | High Manganese Steel | |
| Processing Type | Forging | Use | Well Drilling |
Product Description

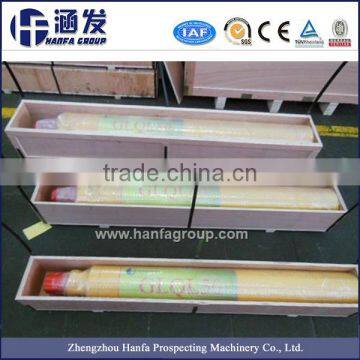

High Pressure DTH Hammer
Our DTH hammer and bits are compatible with CIR, DHD, QL,SD,Mission, etc. series of Atlas and Sandvik etc. They are with high efficiency, low failure rate and long service life. Even for all kinds of high hardness, high abrasive rocks and other harsh conditions, our drilling tools can also realize efficient and economical drilling.
| ----Type and Technical Specification of High Pressure DTH Hammers | ||||||||||||
| Item | GL330 | GL335 | GL340A | GL345 | GL350 | GL355 | GL360 | GL380 | GL3120 | |||
| Drilling Dia. (mm) | 82-85 | 90-93 | 105-130 | 105-130 | 130-152 | 130-152 | 152-305 | 203-350 | 302-508 | |||
| Hammer Length(mm) | 867 | 908 | 1052 | 1034 | 1387 | 1220 | 1450 | 1551 | 1934 | |||
| Outside Dia. (mm) | 71 | 81 | 92 | 98 | 114 | 124 | 136 | 181 | 275 | |||
| Weight(kg) | 19 | 21.8 | 38 | 39 | 69 | 74 | 126 | 277 | 642 | |||
| Working Pressure(Mpa) | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | |||
| Air Consumption | 3-12 | 4.3-14.2 | 3.5-18 | 3.5-15 | 5.7-18 | 6.5-18 | 8.5-25 | 12-31 | 14-45 | |||
| (M3/Min.) | ||||||||||||
| Torque(N.M) | 150 | 205 | 304 | 335 | 590 | 700 | 822 | 1560 | 2410 | |||
| Impact Frequency (Times/Min.) | ≥800 | 950-1500 | ≥800 | ≥800 | 810-1470 | 810-1500 | 820-1475 | 860-1510 | 980-1446 | |||
| Connection 1 | 48.8×4.2 | API 2-3/8 | API 2-3/8 | API 2-3/8 | API 3-1/2 | API 2-3/8 | API 3-1/2 | API 4-1/2 | API 6-5/8 | |||
| Connection 2 | 47-6 | 53-8 | 64-8 | 64-8 | 84-8 | 84-8 | 99.5-8 | 128-10 | 184-8 | |||
| High Efficient High Pressure Hammer | ||||||||||||
| Item | GL345A | GL355K | GL360K | GL380K | ||||||||
| Drilling Dia. (mm) | 105-130 | 140-152 | 165-219 | 203-350 | ||||||||
| Hammer Length(mm) | 1034 | 1098 | 1372 | 1504 | ||||||||
| Outside Dia.(mm) | 98 | 124 | 152 | 180 | ||||||||
| Weight(kg) | 39 | 70 | 92 | 230 | ||||||||
| Working Pressure(Mpa) | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | ||||||||
| Air Consumption (M3/Min.) | 3.5-15 | 4.5-18 | 9-26 | 9.6-24.8 | ||||||||
| Torque(N.M) | 335 | 800 | 1150 | 1870 | ||||||||
| Impact Frequency (Times/Min.) | ≥800 | 840-1500 | 950-1650 | 1100-1550 | ||||||||
| Connection 1 | API 2-3/8 | API 2-3/8 | API 3-1/2 | API 4 1-2 | ||||||||
| Connection 2 | 64-8 | 84-8 | 99.5-8 | 128-10 | ||||||||
