Three wings drag bits tungsten carbide drag bit
- Qingdao port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | HANFA | |
| Model Number | Customized | Type | Drill Bit | |
| Machine Type | Drilling Tool | Certification | AISI | |
| Material | Carbon Steel | Processing Type | Forging | |
| Use | Well Drilling |
Product Description

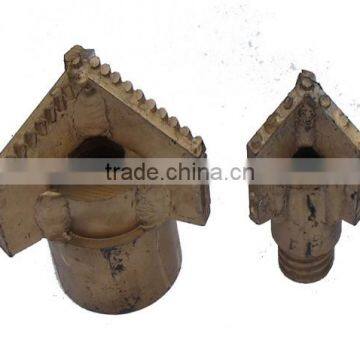

Three wings drag bits tungsten carbide drag bit
Drag bits are known also as blade bits, with TC inserts or diamond inserts on the blades.
Classification
by blades: 2 blades, 3 blades, 4 blades, and so on; the most popular type is 3 blades bits
By bottom shape: stepped type and non stepped type
Application
Applications formations: extremly soft, soft, medium hard.
They are usually designed for use in soft formations such as sand, clay, or some soft rock.
Drag bits are widely used in drilling water wells, mining, geothermal, environmental and exploration drilling.
Feature
1. Drag bits are made according to API standard or NROD thread standard or others.
2. Various step and chevron drag bits are available from 2 inch to 17 1/2 inch.
3. There is very good feedback because of the quality and price.
4. Different drag bits can be made according to your drawings or samples.
Specifications
Size | Type Pin | Wt. (lbs. ) |
1 3/4" - 2 1/2" | AW, A-Rod | 2 |
2 5/8" - 2 7/8" | AW, A-Rod | 2 1/2 |
2 3/4" - 3 1/4" | 3THD/4THD N-Rod, 2" IF | 4 |
3 3/8" - 3 3/4" | 3THD/4THD N-Rod, 2" IF | 4 1/2 |
3 7/8" - 4 3/4" | 2 3/8" API Pin | 6 |
4 7/8" - 5 1/8" | 2 3/8" API Pin | 7 |
5 1/4" - 5 1/2" | 2 3/8" API Pin | 8 |
4 5/8" - 5" | 2 7/8" API Pin | 10 |
5 1/8" - 5 1/2" | 2 7/8" API Pin | 11 |
5 5/8" - 6 1/4" | 3 1/2" API Pin | 18 |
6 1/2" - 6 3/4" | 3 1/2" API Pin | 19 |
7" - 7 1/2" | 3 1/2" API Pin | 21 |
7 5/8" - 8" | 3 1/2" API Pin | 23 |
Note: | ||
