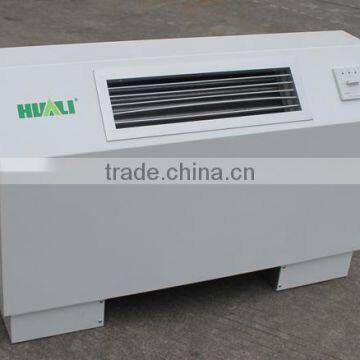

European Type Vertical Fan Coil Unit Vertical Exposed Fan Coil Unit Terminal Fan Coil Unit

1.Air low range: 340~2380 (m3/h)                                                                                                                               2.Cooling capacity range:1.8KW-12.6KW

3.Heating capacity:2.7KW-18.9KW

4.Low noise

•Excellent space efficiency. Multi-mode for installation. Symmetrical design allows you to change the water flow direction according to you actual needs during installation. reducing construction cost.

•Quiet. Compared with other air-conditioning methods, the operation noise of the fan coil unit is very low because the only moving parts are the fan and fan motor.

•Safe Operation. Lower noise by hot galvanized sheet steel with 6mm acoustic insulation layer.

•High Durability. The fan motor is double-sealed against moisture and dust, providing long operation life.

•Integrated models. Integrated model range airflow varies from 250~2000 m3/hincluding nine models.intelligence operations.

•Fresh air by high efficiency synthetic fiber washable filter or aluminum filter.

•V shape extended drain pan design greatly increases the drainage efficiency.

•High quality purple copper, with high diathermanous efficiency, tenacity and rigidity characteristic to bear high hydraulic pressure especially, suits super high building use.

Remark:

1. Cooling: Indoors DB 27°C,WB 19.5°C; Chilled water inlet/outlet temp. 12°C/7°C.

2. Heating: Indoors DB WB 21°C, heating water inlet&outlet temperature 60°C/50°C;

3.The noise level based on: background noise 11.5Db(A) semi-anechoic room.

4. Water resitance refers to that of rated water flow volume;

5. Input power refers to that of High speed air flow;

6. Above parameters are for your reference to model choice of FCU with cooling and heating; Heating energy of one row is 40% of three rows'; Low static pressure air flow volume loss: 10%, high static pressure air flow volume loss: 20%.
