4 Pipe Ceiling Ducted Fan Coil Unit With Plenum Box

FOB Price

US$ 75 - 199 / Unit

1 Unit(Min. Order)

Port SHENZHEN
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Fan Coil Unit
Place of Origin	Guangdong, China	Brand Name	HIGOLDEN
Model Number	HLC	Operating Voltage	230 VAC
Mounting	Ceiling Mount	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

4 pipe Ceiling ducted fan coil unit with plenum box

Description of Horizontal concealed fan coil unit, FCU:

1, Lightweight, compact, solid, and with ultra-thin design
2,Four-row pipes with hyperbolic shutter type aluminum fin heat exchanger, strengthens the air by impeller fan of large input air,

so that the unit maximizes heat transfer efficiently. 3 cooling 1 cooling and 2 cooling and 2 heating for optional.
3, Particularly, the unit adopts large impeller slow-speed of revolution fan and low noise motor
With high, medium, and low wind speed in third gear, water system adopts room temperature control devices to adjust flexibly.

When nobody is in the room, the fan stop automatically, economic and energy-saving
4, Each model has four kinds of overboard static pressures which are 0PA, 80PA, 60PA, and 80PA (optional)
5, Unit can achieve the overboard static pressure by only updating the motor connector plug
6, Controlled easily by subarea in accordance with the application and room design air-conditioning system into several zone system.

Parameter of horizontal concealed fan coil unit

Horizontal Concealed Fan Coil
Model			HLC-34HC	HLC-51HC	HLC-68HC	HLC-85HC	HLC-102HC	HLC-136HC	HLC-170HC	HLC-204HC	HLC-238HC
Air flow (m 3 /h)	High speed		340	510	680	850	1020	1360	1700	2040	2380
	Medium speed		255	383	510	638	765	1020	1275	1530	1785
	Low speed		170	255	340	425	510	680	850	1020	1190
cooling capacity	High	W	2247	3146	4146	5056	5955	7758	9657	11601	13965
	High	BTU	7669	10737	14150	17256	20324	26478	32959	39594	47663
	Medium	W	1620	2440	3290	4120	4850	6550	8190	9730	11580
	Medium	BTU	5529	8328	11229	14062	16553	22355	27952	33208	39523
	Low	W	1310	2010	2650	3320	3900	5300	6610	7860	9350
	Low	BTU	4471	6860	9044	11331	13311	18089	22560	26826	31912
heating capacity	High	W	3251	4697	6189	7747	9491	11997	14732	18162	22137
	High	BTU	11096	16031	21123	26441	32393	40946	50280	61987	75554
	Medium	W	2350	3520	4530	6040	6850	9260	11740	14140	16360
	Medium	BTU	8021	12014	15461	20615	23379	31604	40069	48260	55837
	Low	W	1620	2470	3130	4170	4740	6500	8180	9710	11290
	Low	BTU	5529	8430	10683	14232	16178	22185	27918	33140	38533
surplus pressure of outlet (Pa)	Normal		0 or 12
surplus pressure of outlet (Pa)	High static pressure		30 or 50
Cooling water temperature			7 to 12 degree
Hot water temperature			40 to 60 degree
Power supply			AC220V/50Hz
Heat Exchanger	Type		copper pipes covered into aluminum fins, fin pitch 2.2mm
	Water supply kg/h		324	482	655	814	936	1278	1602	1915	2178
	Water resistance kPa		30	30	30	30	40	40	40	40	50
	Working pressure		1.6MPa
Low static pressure FCU		Input power w	37	52	62	76	96	134	152	189	228
Low static pressure FCU		Motor power w	10	16	20	25	30	20×2	25×2	30×2	40×2
High static pressure FCU	Static pressrue 30Pa	Input power w	44	59	72	87	108	156	174	212	253
	Static pressrue 30Pa	Motor power w	12	20	25	30	40	25×2	30×2	40×2	50×2
	Static pressure 50Pa	Input power w	49	66	84	100	118	174	210	250	300
	Static pressure 50Pa	Motor power w	16	25	30	40	50	30×2	40×2	50×2	60×2
Fan motor quantity			1	2	2	2	2	3	4	4	4
Noise dB(A)	Low static pressure		≤37	≤39	≤41	≤43	≤45	≤46	≤48	≤50	≤52
	High static pressure 30Pa		≤40	≤42	≤44	≤46	≤47	≤48	≤50	≤52	≤54
	High static pressure 50Pa		≤42	≤44	≤46	≤47	≤49	≤50	≤52	≤54	≤56
Pipe	Inlet/outlet water pipe		ZG3/4 "internal thread
Pipe	Condensation water pipe		ZG3/4" external thread
Dimension		L mm	780	880	980	1080	1180	1480	1680	1780	1880
		W mm	500	500	500	500	500	500	500	500	500
		H mm	260	260	260	260	260	260	260	260	260
20GP container loading quantity			325	290	260	236	216	172	152	143	135
40GP container loading quantity			666	591	531	482	441	351	309	292	277

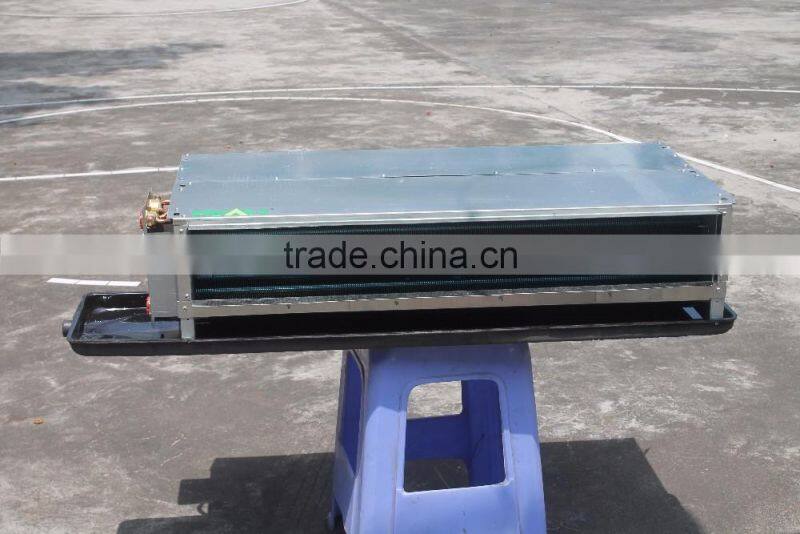

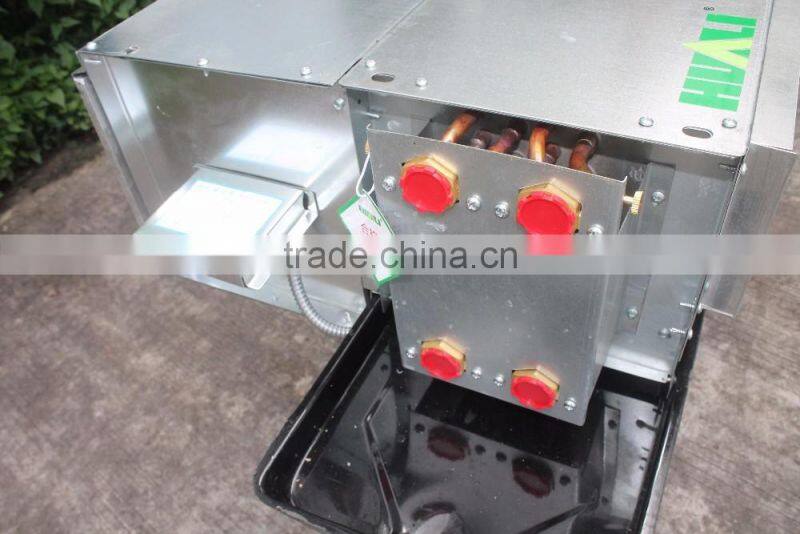

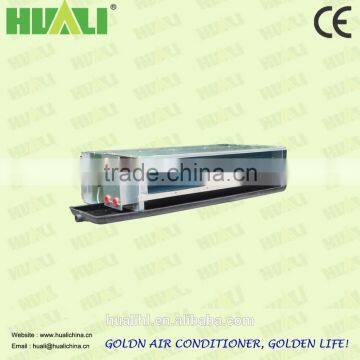

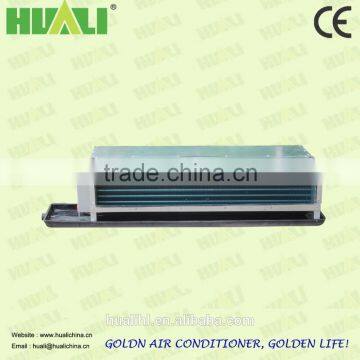

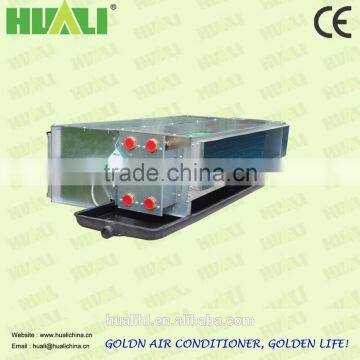

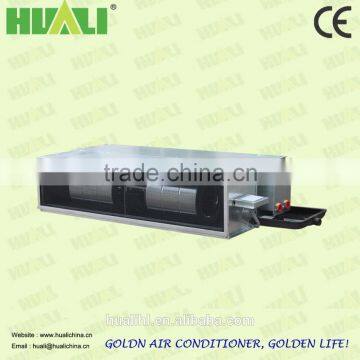

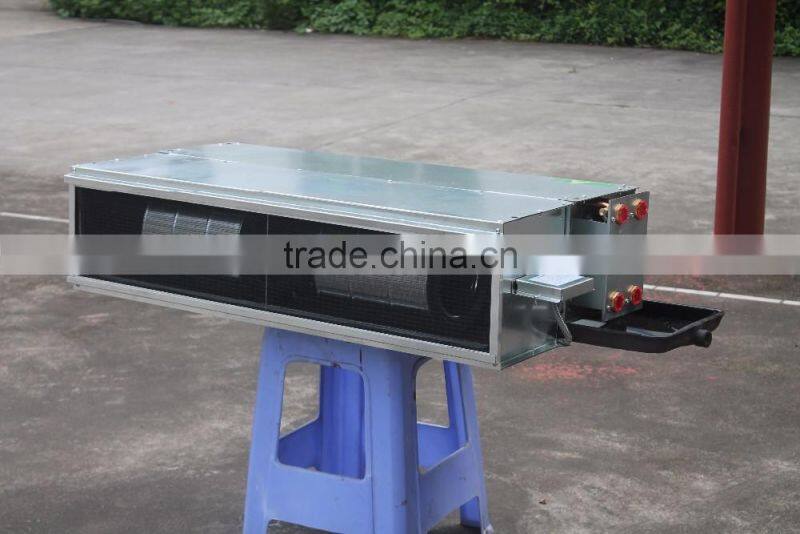

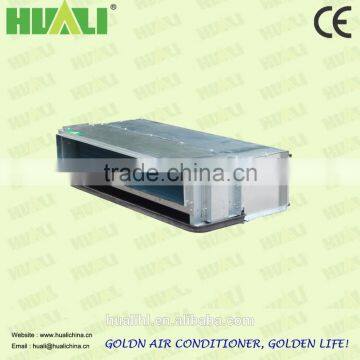

Photos of ceiling ducted fan coil unit
