Home > Products > Ore process > Iron Ore Mining Vibrating Screen Mesh
Iron Ore Mining Vibrating Screen Mesh
- Qingdao Dalian Shanghai ect
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Circular | |
| Application | Ore | Place of Origin | Henan, China | |
| Brand Name | xinguang | Model Number | all | |
| Certification | iso | After-sales Service Provided | Overseas service center available |
Product Description

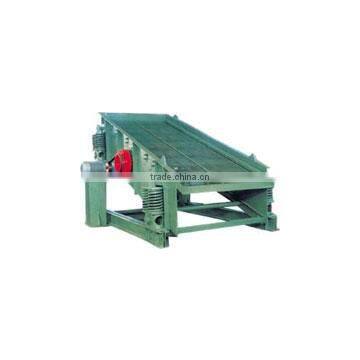

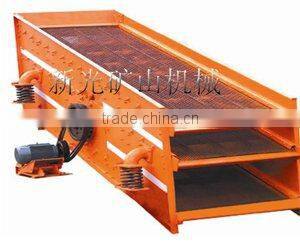

Iron ore mining vibrating screen mesh
Application of mining vibrating screen
YK series circular vibrating screen adopting German technology is a kind of high-efficiency vibrating screen . This series circular vibration screen is of circular movement and designed for screening the ashlars in the stone pit . And it can also be used for classification in the coal selecting . ore selecting , building materails , electrical and chemical fields .
Features of mining vibrating screen
1: Higher excitation force—The machine converts the eccentric force of the blocks to the source of excitation force .
2: Simple construction , convenient maintenance ----crossbeam and screen box are connected with high strength screw or high streng the welding .
3: Flexible connection , run steadily with tire coupling .
4: Small amplitude, high-frequency , high inclination –angle structure , high efficient sieving , higher capacity , longer longevity , energy – saving , less noise .
Model
| Layer | Area (m2)
| Size (mm) | Max feed size (mm) | Capacity(m3/h) | Vibrations (r/min) | double-amplitude | Motor power(kw) | Weight (kg)
| slope angle of screen plate | Specification (mm) |
YK1236 | 1 | 4.3 | 1-100 | 300 | 30-160 | 970 | 8 | 5.5 | 3210 | 20° | 1200×3600 |
3YK1236 | 3 | 4.3 | 1-100 | 300 | 30-160 | 970 | 8 | 11 | 4110 | 20° | 1200×3600 |
2YK1245 | 2 | 5.4 | 5-50 | 200 | 35-180 | 970 | 7 | 11 | 4320 | 20° | 1200×4500 |
3YK1245 | 3 | 5.4 | 5-50 | 200 | 35-180 | 970 | 8 | 11 | 4460 | 20 | 1200×4500 |
YK1535 | 1 | 5.25 | 5-50 | 200 | 34-200 | 970 | 8 | 11 | 4680 | 20° | 1500×3500 |
3YK1535 | 3 | 5.25 | 5-50 | 400 | 34-200 | 970 | 8 | 15 | 5710 | 20° | 1500×3500 |
YK1545 | 1 | 6.75 | 5-50 | 400 | 44-200 | 970 | 8 | 11 | 4500 | 20° | 1500×4500 |
2YK1545 | 2 | 6.75 | 5-50 | 400 | 44-200 | 970 | 8 | 15 | 4830 | 20° | 1500×4500 |
3YK1545 | 3 | 6.75 | 5-50 | 400 | 44-200 | 970 | 8 | 15 | 5832 | 20° | 1500×4500 |
4YK1545 | 4 | 6.75 | 1-100 | 400 | 44-200 | 970 | 8 | 18.5 | 6070 | 20° | 1500×4800 |
3YK1548 | 3 | 7.2 | 5-100 | 400 | 47-275 | 970 | 7 | 15 | 6540 | 20° | 1500×4800 |
4YK1548 | 4 | 7.2 | 5-100 | 400 | 47-275 | 730 | 8 | 18.5 | 6850 | 20° | 1500×4800 |
YK1848 | 1 | 8.8 | 5-100 | 400 | 56-330 | 755 | 8 | 15 | 6189 | 20° | 1800×4800 |
2YK1848 | 2 | 8.8 | 5-100 | 400 | 56-330 | 750 | 8 | 18.5 | 6539 | 20° | 1830×4800 |
3YK1848 | 3 | 8.8 | 5-100 | 400 | 56-330 | 970 | 7 | 22 | 6935 | 20° | 1800×4800 |
2YK1845 | 2 | 9.27 | 5-100 | 400 | 63-450 | 970 | 7 | 22 | 7222 | 20° | 1800×5400 |
3YK1854 | 3 | 9.27 | 5-100 | 400 | 63-450 | 970 | 7 | 22 | 8640 | 20° | 1800×5400 |
YI1860 | 1
| 10.8 | 1-100 | 400 | 63-450 | 970 | 8 | 18.5 | 7222 | 20°
| 1800×6000
|
