CTQ-D100YA2 Dirlling Rig
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | CNC or Not | Normal | |
| Place of Origin | Shandong, China | Brand Name | longye | |
| Model Number | CTQ-D100YA2 | Weight | 2800kg |
Product Description
Specifications

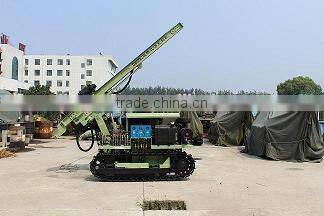

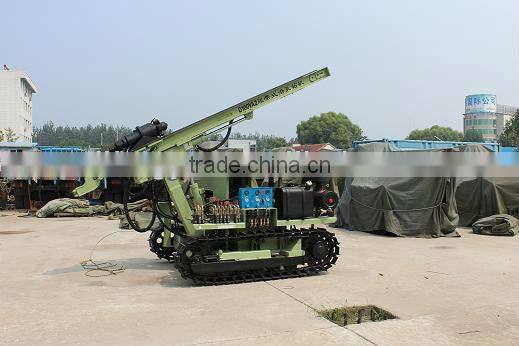

CTQ-D100YA2 blasting drilling rig,low air pressure hydraulic drilling rig
CTQ-D100YA2 crawler hydraulic drilling rig,adopt new-style hydraulic technique which have low air consumption,large rotation torque.the structure of the drilling rig is compact,The minimum circumgrating radius is 2.8m,During drilling the slide-skid are support on the ground to ensure the drilling has good stability.
Walking system adopt a large torque agencies to ensure that a strong driving force for the output.
Elevating and push system use the realiable performance fuel tank to complete working.
Ratation system can change the speed easily,It fulill different requirements in different working conditions.
The usage o double-pump reduce the cost o damage odds and maintance costs.
Total weight | 2800kg |
Bore diameter | 90-130mm |
Dimension | 4100*2030*2020 |
Bore depth | 30m |
Travelling speed | 2km/h |
Climb ability | 30° |
Feed stroke | 2000mm |
Working pressure | 0.7-1.0Mpa |
Ground clearance | 250mm |
Air consumption | 7-10m3/min |
Slip frame pitch degree | Up and down 100 degree each |
Slide kid slanting allowance | Left 35 degree right 10 degree |
Rated motor power | 33kw |
