Hydraulic Crawler Drilling Rig(CTQ-G150Y)
- T/T
You May Like
Product Details
| Condition | New | Type | Core Drilling Rig | |
| Place of Origin | Shandong, China | Brand Name | longye | |
| Model Number | CTQ-G150Y | Usage | Ore |
Product Description
Specifications

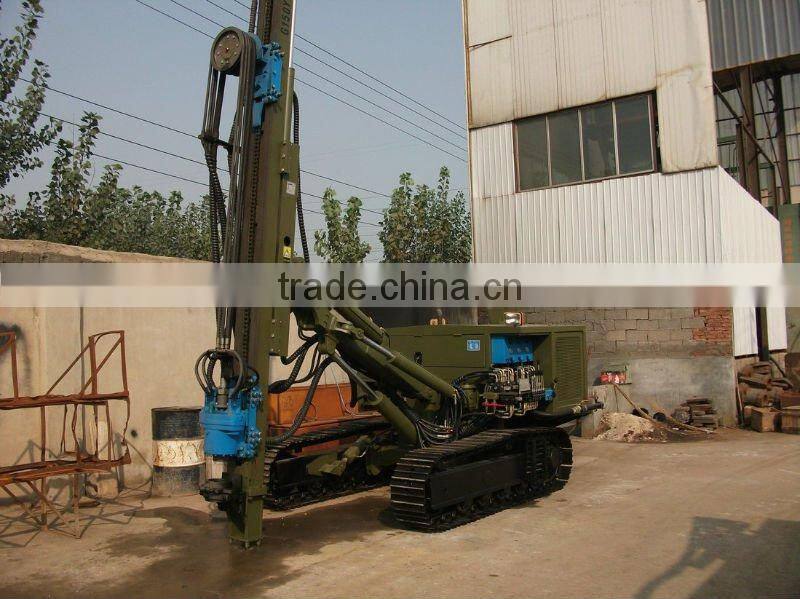

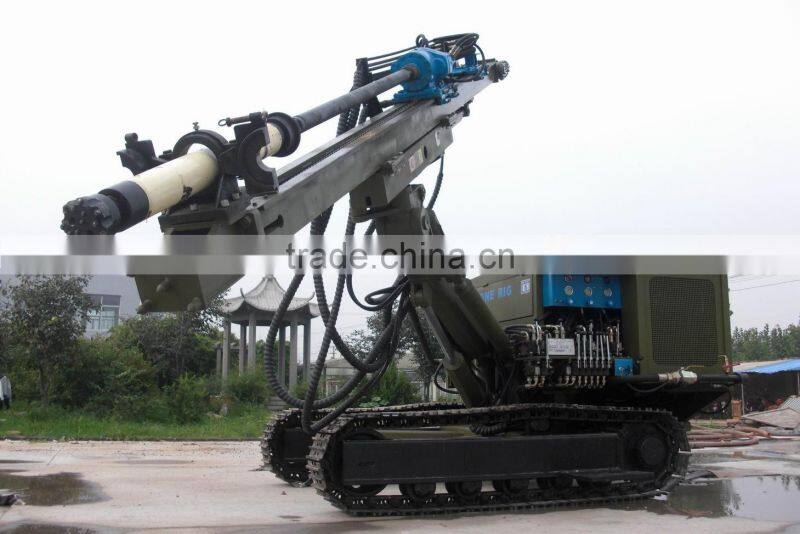

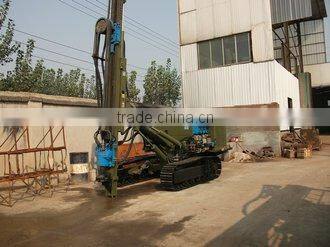

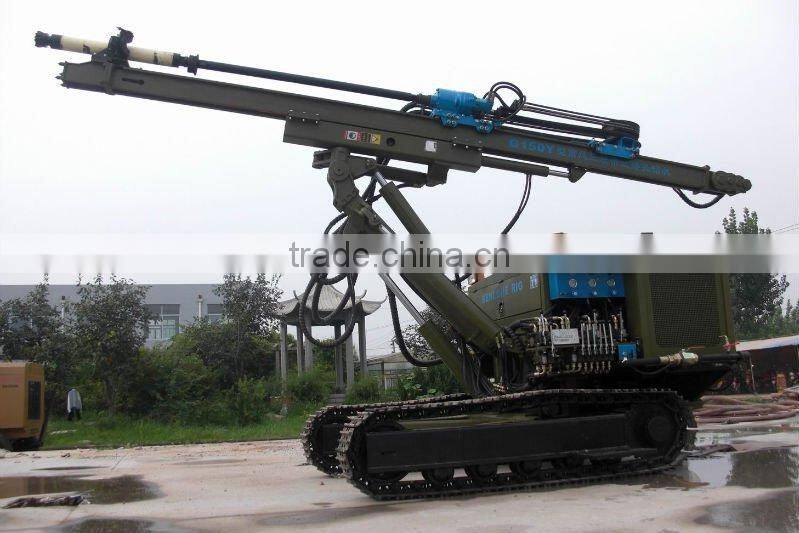

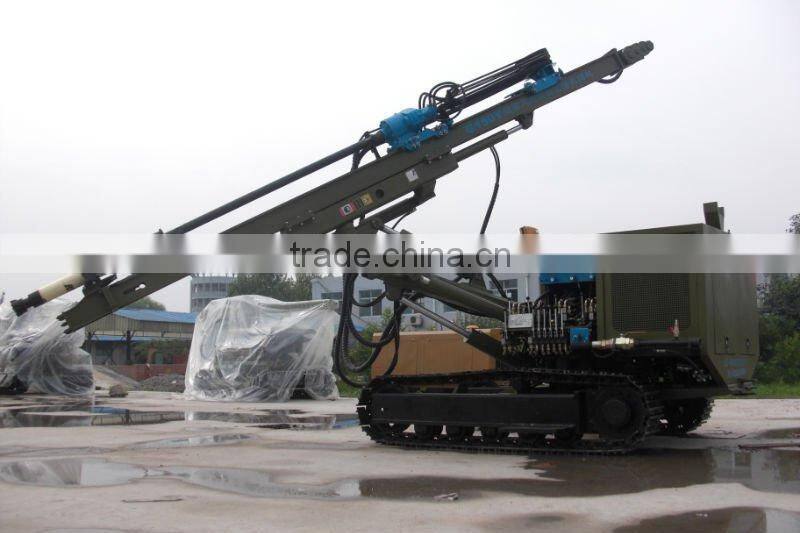

CTQ-G150Y hydraulic crawler drilling rig,high air pressure hydraulic drilling rigCTQ-G150Y hydraulic crawler drilling rig
CTQ-G150Y drilling rig have the charter of low energy consumption,high efficiency,eeasily transportation.The operating has been implemented by hydro-system.Due to the double motoring design it has more stronger wrench in large hole operating.The flexibility and strange in climbing made it can working in most demanding area.The diameter of the driller is among 105-165mm and it is easily in maintenance.
Application:
This type of machine is opertism choice in opening are mining,hydro-power plant,electric power stations,and road building for exploraion the stone
Working pressure | 1.2-2.46Mpa |
Air consumption | 11-25m3/min |
Bore diameter | 105-165mm |
Bore depth | Horizontal 50 down 30 |
Feed stroke | 3000mm |
Drill rod diameter | 76mm |
Guide compensation | 1200mm |
Lifting force | 26000N |
Guide pitch | Up and down 100degree |
Guide swing | Left 90 right45 |
Boom pitch | Up and down 70degree |
Boom swing | Left 45 right45 |
Climb ability | 30 degree |
Ground clearance | 300mm |
Walking speed | 2.5km/h |
Rotation speed | 0-90r/min |
Rotation torque | 3000N.M |
Motor power | 56KW |
Total weight | 6300kg |
dimension | 5800*2070*2400 |
