Home > Products > New Products > High Precision HX-GS282A GNSS Survey Antenna
High Precision HX-GS282A GNSS Survey Antenna
- Xingang TJ
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Tianjin, China | Brand Name | SunNav | |
| Model Number | HX-GS282A, HX-GS282A |
Product Description

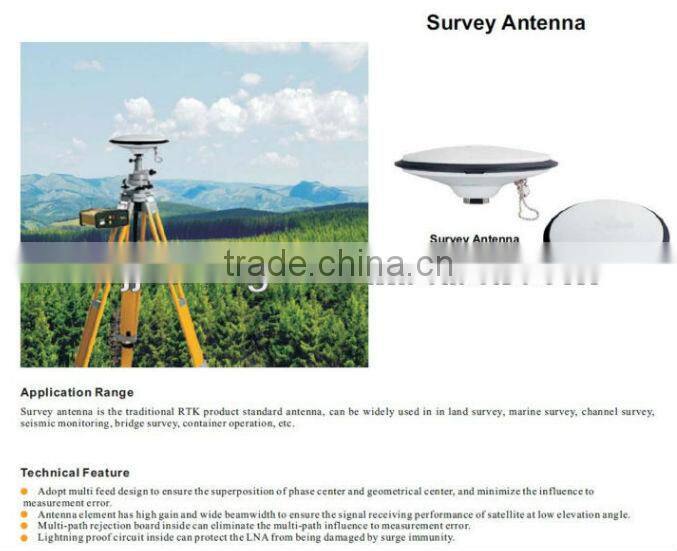

Specifacations of HX-GS282A
| Survey Antenna HX-GS282A | |||
| Antenna Specification | Frequency Range: GPS L1, GLONASS L1 | ||
| Impedance: 50 Ohm | |||
| Polarization: RHCP | |||
| Axial Ratio: ≤ 3 dB | |||
| Azimuth Coverage: 360° | |||
| Output VSWR: ≤ 1.5 | |||
| Gain at Zenith: ≥ 5 dBi | |||
| Phase Center Error: ± 2 mm | |||
| LNA Specification | LNA Gain: 40 dB | ||
| Noise Figure: ≤ 2.0 dB | |||
| Output VSWR: ≤ 2.0 | |||
| Ripple: ± 2dB | |||
| Drain Voltage: 3--18 VDC | |||
| Current Consumption: ≤ 45 mA | |||
| Group Delay: / | |||
| Mechanical Specification | Dimension: φ190 x 67.4 mm | ||
| Connector: TNC Female | |||
| Weight: 560g | |||
| Environmental Specification | Operating Temperature: -40°C to +85°C | ||
| Storage Temperature: -55°C to +85°C | |||
| Humidity: 95% Non-Condensing | |||
The Features about the HX-GS282A
According to the size, volume of products,using standard packaging.
Via international express (DHL, Fedex, UPS, TNT)are all available.It can be fast for you to transport the goods in your hands.
SunNav Technology Co., Ltd. is a high-tech enterprise that specializes in researching and manufacturing high-precision GNSS motherboard and industrial GNSS products.
Our aim is to provide the high-quality and high-security GNSS products and services.
We have an experienced core technology R&D team, who has been unremitting efforts to research and develop the new GPS and GNSS technologies.
Why choose us?
1.Professional
We are professional GNSS products supplier and have export to more than 10 countries.
2.Productive
Ensures prompt delivery,7 days after we get your receipt.
3.High-quality
Strict and complete quality system guarantees high quality.
4.Service
Your requirement and questions are always our first priority. We focus on every step of the orders, from order confirmation to delivery.
5. Warranty
We guarantee that all GNSS products a year warranty, And to provide comprehensive
after-sales work.
