High Accuracy Gnss Survey Antenna HX-GS481A
US$ 199 - 319
/ Unit
1 Unit(Min. Order)
- Xingang Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Type | Gps Antenna | Use | Other, Land survey, Marine survey, Channel survey, Seismic monitoring, etc. | |
| Place of Origin | Tianjin, China | Brand Name | SunNav | |
| Model Number | HX-GS481A |
Product Description
Specifications

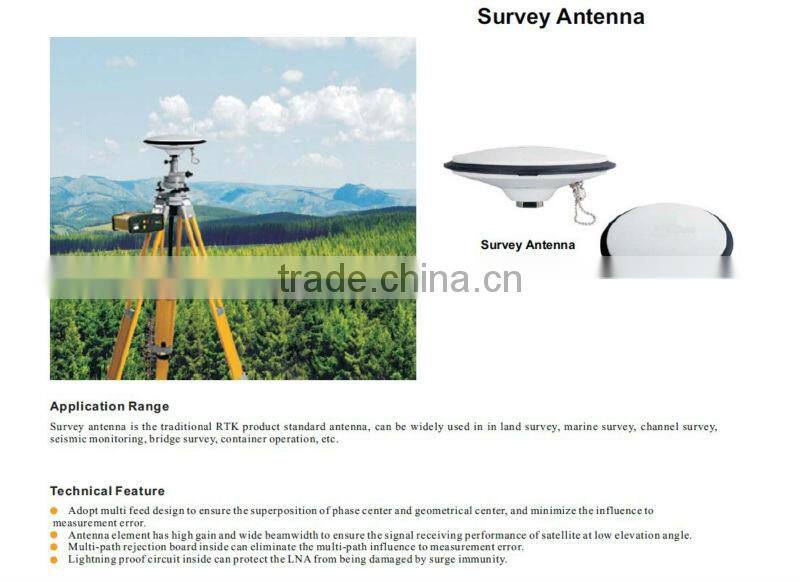

1.Adopt multi feed design2.Has high gain and wide beam width
3.Mulit-path rejection board
4.Lightning proof circuit
Specifacations of HX-GS481A
| Survey Antenna HX-GS181A | |||
| Antenna Specification | Frequency Range: GPS L1/L2, GLONASSL1/L2 | ||
| Impedance: 50 Ohm | |||
| Polarization: RHCP | |||
| Axial Ratio: ≤ 3 dB | |||
| Azimuth Coverage: 360° | |||
| Output VSWR: ≤ 1.5 | |||
| Gain at Zenith: ≥ 5 dBi | |||
| Phase Center Error: ± 2 mm | |||
| LNA Specification | LNA Gain: 40 dB | ||
| Noise Figure: ≤ 2.0 dB | |||
| Output VSWR: ≤ 2.0 | |||
| Ripple: ± 2dB | |||
| Drain Voltage: 3--18 VDC | |||
| Current Consumption: ≤ 45 mA | |||
| Group Delay: ≤ 5ns | |||
| Mechanical Specification | Dimension: φ190 x 67.4 mm | ||
| Connector: TNC Female | |||
| Weight: 560g | |||
| Environmental Specification | Operating Temperature: -40°C to +85°C | ||
| Storage Temperature: -55°C to +85°C | |||
| Humidity: 95% Non-Condensing | |||
