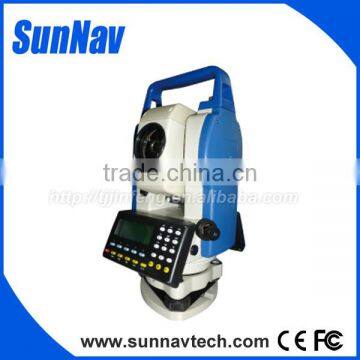

SunNav Total Station MTS800B

Model

MTS800 Series

MTS800B Series

Telescope

Length of Sleeve

150mm


Objective lens aperture

45mm

Magnification

30X

Resolution

4.0''

Field Angle

1°30'

Shortest sighting distance

1.5m

Stadia proportion constant

100

Stadia Constant

0

Angle Measurement

Measurement Mode

Optical incremental / Absolute encoder

Reading Mode

   Heriizontal Circle:Diameter  Vertical Circle:Single

Minimum Reading

1"/5"

Precision

2"

Display

Duplex

Display Mode

Chinese,English

Reflectless Prism

Precision

5+3

Minimum Reading

Fine mode: 1mm (0.005ft) / tracking mode: 1mm (0.005ft)

Ranging

MTS800/200m

MTS800B/350m

Singe prism

 Precision

2+2

Minimum Reading

Fine mode: 1mm (0.005ft) / tracking mode: 1mm (0.005ft)

Ranging

5000m

Compansator

Compansating rang

±3'

COM Port

Communication Standard

RS232C

Data Output Interface

Yes

Laser Plummet

Spot Diameter

≤2mm

Plummet Precision

±1mm

Tribrach

Tribrach Type

Removable Tribrach

Power Supply

Battery

NI-MH Battery

Voltage

DC7.2V

Capacity

3000mAh

Memory points

50000

Working Temperature

-20°C~+50°C

Storage Temperature

-40°C~+50°C

Net weight

5.8kg

Built-in Measuring Program

Coordinate measurement, Stakeout measurement, Resection, MLM, REM, Area measurement, Offset measurement ,Linear loft angle retest and so on.

Others

       Ranging conditions: haze, visibility 23.5Km, sunrise and sunset times
