Handheld GPS receiver,GIS data receiver IGS150

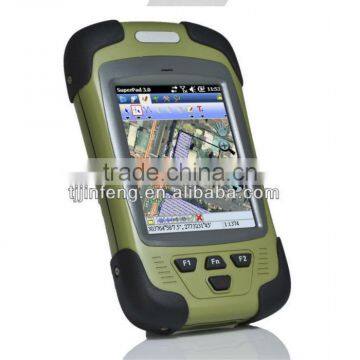

IGS150 Handheld GPS

It is windows mobile 6.5 operating system’s mobile GIS, equipped with Bluetooth, GPRS and webcamera.

Robust, streamlined and thin design for hard conditions, easy to operate with one hand.

Provides communication by microphone and video, data transfer, can download the user’s own software.

Professional GPS with high accuracy . Receiving GPS signals with high stability.

Supports download of orbit tracking, with a second advanced application development.

3 megapixel camera, 6 X zoom with autofocus, combined with video function.

GNSS Characteristics

Internal antenna: 20 channels

- GPS L1 C/A

- SBAS: WAAS/EGNOS/MSAS

External antenna connector

NMEA-0183 and Sirf Protocol output 1Hz

TTFF:50s

Accuracy Specifications (Horizontal RMS)

Real-time SBAS: 2-5m typical

Processor

CPU: 624MHZ

Operating System

Microsoft Windows Mobile 6.5 Professional

Software package includes:

- Internet Explorer®

- Office Mobile

- ActiveSync®

- Transcriber (handwriting recognition)

Communications

Cellular

Built in GSM/GPRS

850/900/1800/1900MHz

Bluetooth

Bluetooth 2.0 with EDR

WiFi

Integrated 802.11b / g

Interface

USB

Mini USB interface V2.0

Multimedia & Sensors

Camera 3M Pixels

Speaker

Microphone

Physical Characteristics

Size 168x88x26 mm

Weight 260g

User Interface Keyboard 4- function buttons

Display 3.5 inchTFT colours touch-screen 265k colours, 640 x 480 pixels

Memory 256MB Flash ROM + 128MB SDRAM

Mini SD cards up to 8G

Environmental Characteristics

Operating temperature:-20° to +60°C

Storage temperature:-30° to +70°C

Humidity: 95% non condensing

Waterproof: IP54

Free drop: 1.2 m on concrete

Power Characteristics

3.3V 3000mAH Li-polymer

Battery life: > 8hrs

Charge time: 4 hours

Removable battery

Standard Accessories

Stylus

Hand-strap

A/C charger

USB cable
