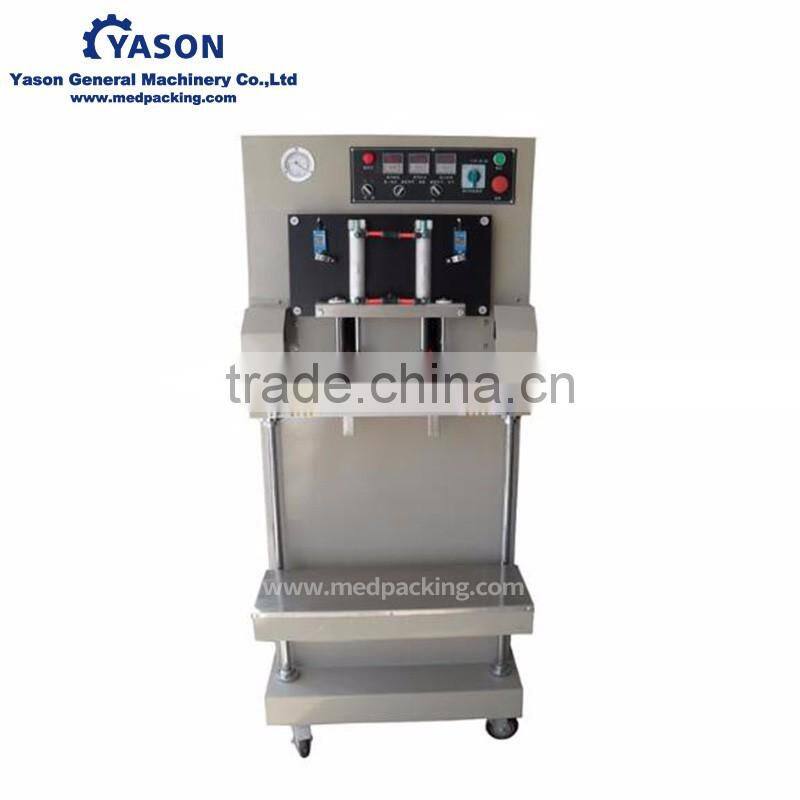

DZQ-600F Pumping Packaging Machine/Vacuum Packaging Machine

Name:DZQ-600F Outside pumping type vacuum packing machine

Technical parameters:

Power supply: 220V, 50Hz

Heat sealing power: 500W/800W

The vacuum pump power: 900W

Air compressor power: 1.5 KW

The minimum absolute pressure in vacuum chamber: 1 kpa

Heat seal effective size: 600* 8 mm

Vacuum pump displacement: 20 m/h

Seal center to the surface size: 1250 mm

Film thickness: 0.12 mm or less (single)

Dimension: 800 * 900 * 1900 mm

Weight: 240kg

Special request: can be customized to the sealing length increased to 700 mm, 800 mm and 1000 mm

Equipment introduction

Outside type vacuum packaging machine is the main function of smoke gases in plastic bags, in addition to compressive strength, the air resistance, preservation, and so on.

But there are many food not suitable for use vacuum packing and must use vacuum packing, food after vacuum packaging, plastic bags inside air pressure is greater than the atmospheric pressure outside packing bag, can effectively prevent food compression fracture deformation, does not affect the appearance of packaging and printing.

The machine adopts transparent organic glass cover, the packaging process be clear at a glance, with a pumping air into vacuum state, sealing, lettering, cooling of a complete function, the body panel is equipped with the vacuum time, heat sealing time, cooling time and temperature and so on key, according to the actual packing item set, in order to achieve the ideal effect of packaging.

This series of multifunctional true air switch installed, complete functions, can be used in intermittent single sealing packaging, can also be used for inert gas after vacuum packaging or vacuum packaging.

The no room air mouth institutions, not restricted by the size of the vacuum chamber, a wide range of application.

The machine main power for air supply, customers need to bring your own air compressor equipment.
