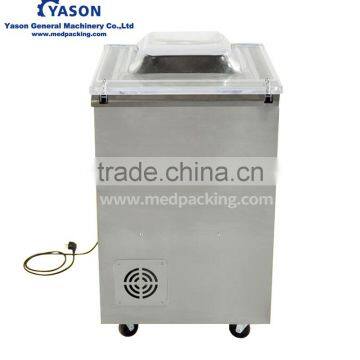

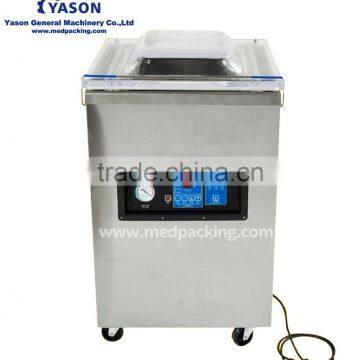

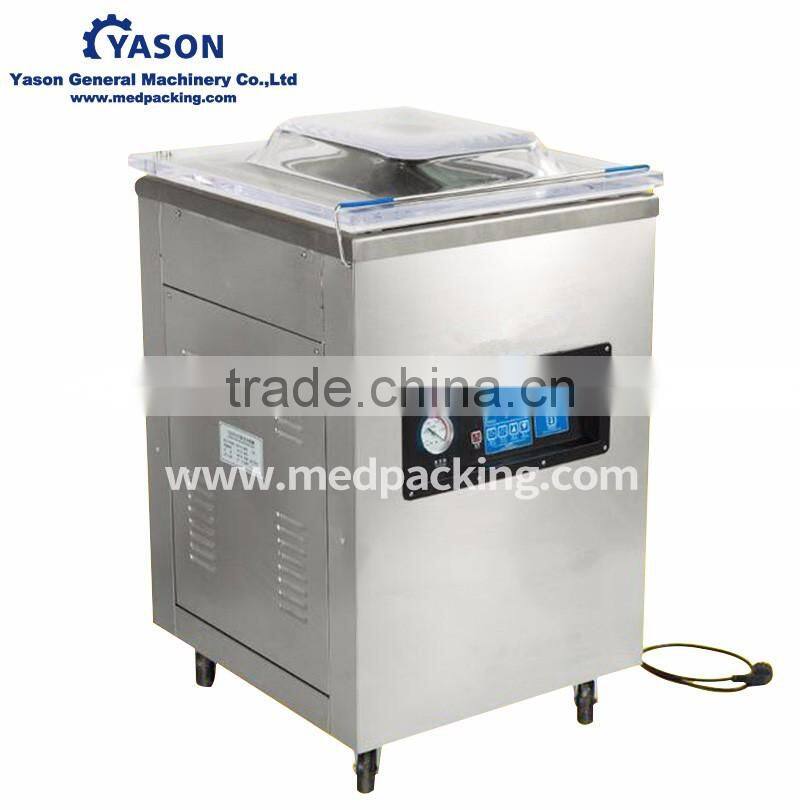

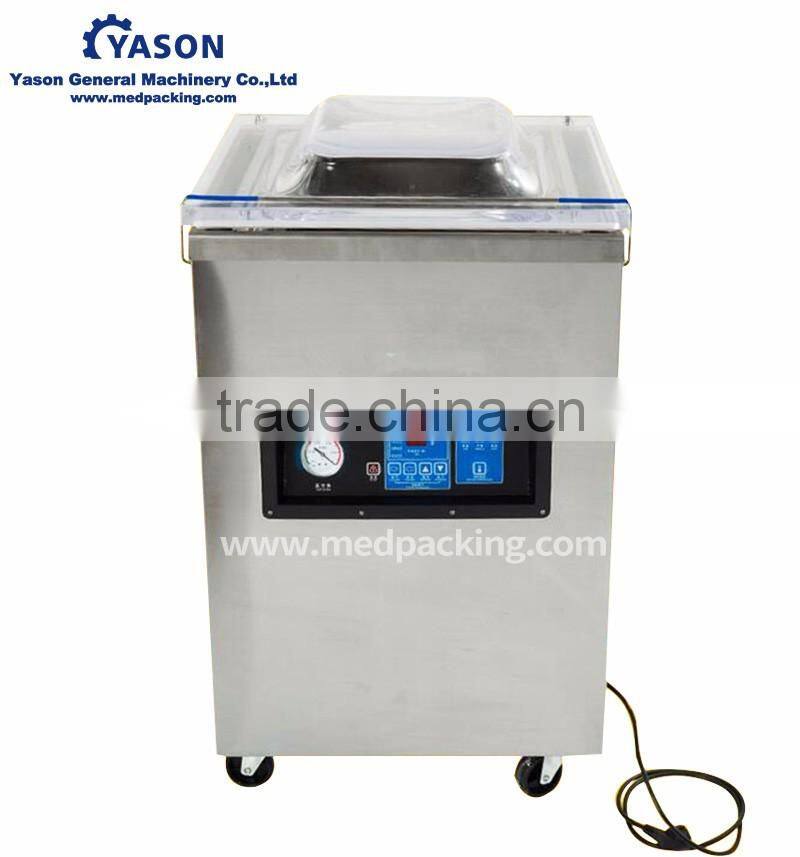

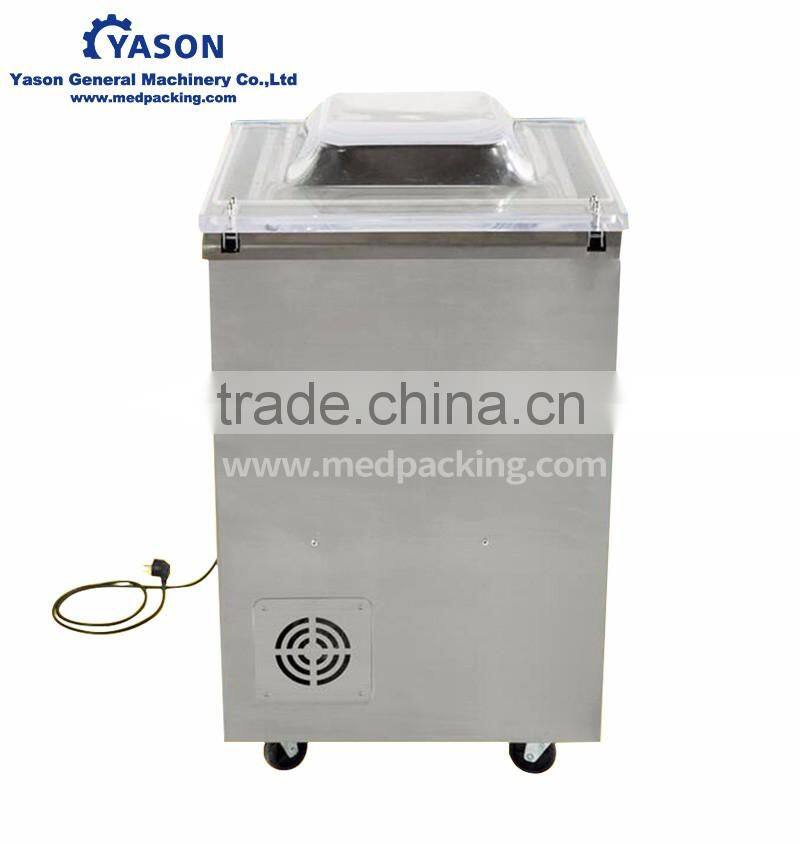

DZ-500-2D single chamber vacuum packaging machine for food

Name:DZ-500-2D single chamber vacuum packaging machine for food

Technical parameters:

Power supply: 220V/50Hz

Model: DZ-500-2D

Power: 0.75 KW

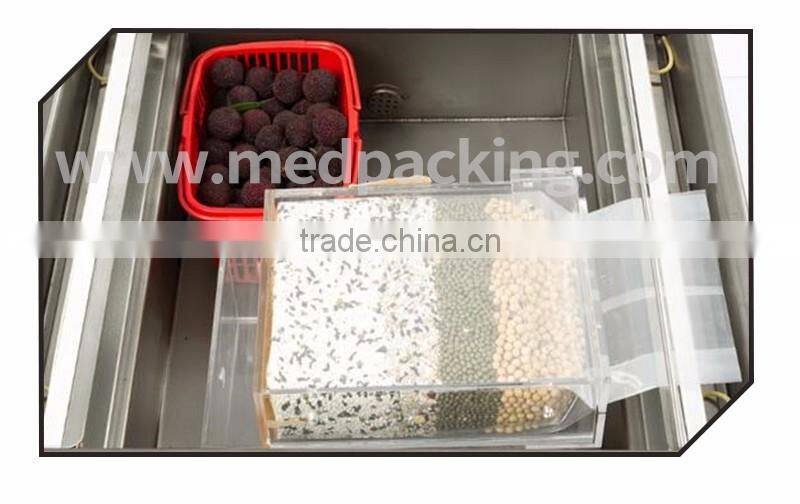

Vacuum chamber size: 500*500*115mm

The sealing size: 500*10mm

Extraction speed: 20 m3 / h

Packaging capacity: 4 ~ 6 r/n

Dimension: 540*640*900mm

The weight: 85 kg

Equipment introduction:

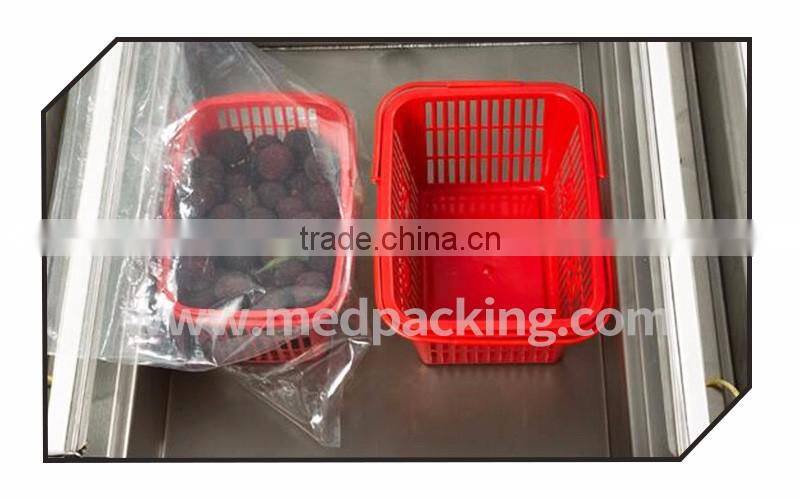

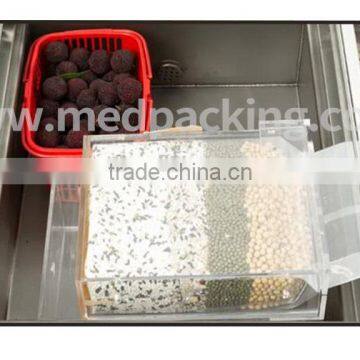

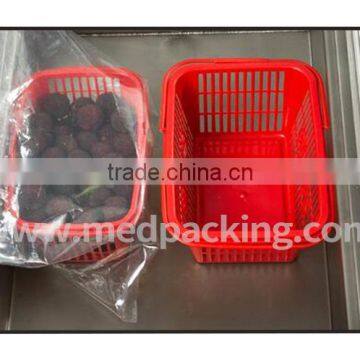

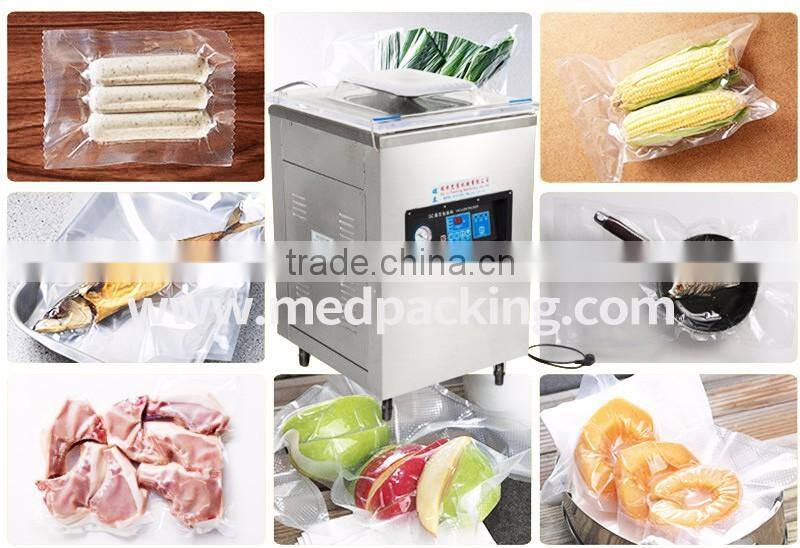

Vacuum machine in plastic composite film or plastic aluminum foil composite film for packaging materials, for all kinds of instruments drugs, food, fruit, pickles, preserved fruits, aquatic products, local products, chemical raw materials, electronic components and * *, etc.

Whether it is a solid, powder, paste or liquid vacuum heat sealing packaging.

Because bag vacuum degree is high, can effectively prevent the oxidation of the lipid product of anaerobic-aerobic breeding bacteria caused by corruption and deterioration, achieve quality, fresh, flavor, the function of color preserving, storing products (goods) longer, for some loose items at the same time, after vacuum packaging shrink packing volume, easy transportation and storage.

Characteristics of the equipment:

This machine adopts transparent organic glass cover, be clear at a glance the packaging process.

This machine has the function of pumping air into vacuum state, sealing a complete, for the different packaging materials and packaging requirement, this machine is equipped with the vacuum and heat sealing time adjustment device, in order to achieve the ideal effect of packaging, the machine can be according to the requirements of users, with convenient to change words printed is clear and the printing device, which at the time of sealing, the sealing line printed on shelf life, delivery date or factory number, to comply with the provisions of the national food labeling method;

Machine has advanced design, complete function, stable and reliable performance, wide applicable range, good sealing strength, use, maintenance is convenient wait for a characteristic, is the ideal vacuum packaging machine.

Steps:

A: wired up

B: open the power switch, according to the requirement of the vacuum packing set vacuum time

C: according to the material of vacuum bag to set the sealing temperature and sealing time

D: place the product on sealing strip

E: press the vacuum cover start vacuum

F: when after reaching a certain vacuum degree, into the sealing process

G: sealing after entering cooling condition, then deflated, finish packing
