Hot Item JULY Made Newly Design C-frame Machinery Power Press
- Shen zhen
- T/T Credit Card PayPal
You May Like
-
JULY Factory Offer 5 Tons Small Hydraulic Pressing Machine
-
Bottom Price JULY Brand C Frame Hydraulic Press for Coins
-
China Manufactory Custom Small Manual Hydraulic 3t Leather Stamping Press
-
Exclusive JLUY Made High Speed Four-column Pot Making Machine
-
China JULY Whole Sale Hydraulic Pipe Punching Manual Machine
-
JULY Customized Logo Hydraulic Press for Carton
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Hydraulic | Place of Origin | Guangdong, China | |
| Brand Name | JULY | Model Number | JLCX106K-10T | |
| Voltage | 380V | Power(W) | 2.2kw | |
| Dimension(L*W*H) | 550*500*2100mm | Certification | CE | |
| Warranty | one year | After-sales Service Provided | Overseas service center available |
Product Description

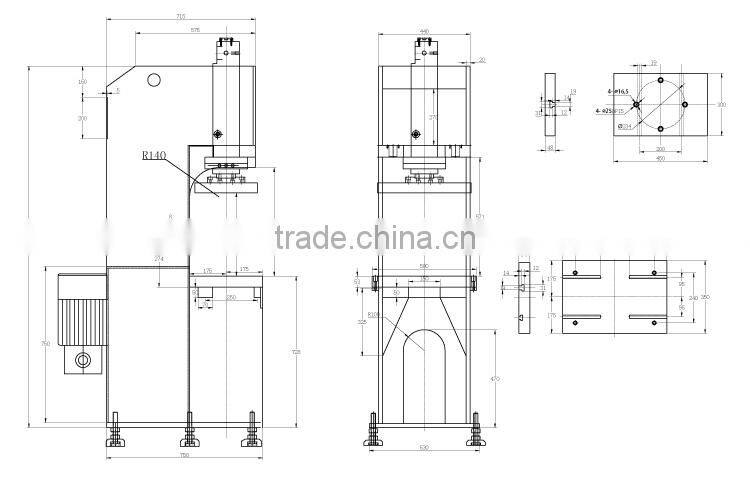

Drawing
Specification
| Specification | Unit | JLCX106K -10T | JLCX106K -20T | JLCX106K -30T | JLCX106K -50T | JLCX106K -100T | ||
| Nominal Force | KN | 100 | 200 | 300 | 500 | 1000 | ||
| The Maximum Open Height | MM | 400 | 450 | 450 | 500 | 550 | ||
| The Size of The Working Table | MM | 450*300 | 500*350 | 500*400 | 600*400 | 650*500 | ||
| The Maximun Stroke | MM | 250 | 300 | 300 | 300 | 300 | ||
| Electrical | V | 380 | 380 | 380 | 380 | 380 | ||
| Motor Power | KW | 2.2 | 3.7 | 3.7 | 5.5 | 5.5 | ||
Features
1.Welded open structure allows a firm to maintain sufficient rigidity of the body also has the most convenient operationg space.
2.Compact,smooth,fast,high efficiency,low energy consumption,simple operation;
3.Imported hydraulic components and electrical components,durale;
4.Pressure,stroke can be adjusted to suppress technological requirements;
5.Hands operating system,with emergency stop and jog function,safe and efficient.
Application
1.Metal or non-metallic parts,stamping,molding,light stretching,plastic and pressure assembly;
2.Glasses,locks and hardware parts of repression,electronic connectors,electrical parts,electrical switch,stator press-fit,etc.;
3.Especially suitable for punching the phone keypad,transformer plastic,motor assembly,shaft,bearings pressed into the other.
Optional accessories
Packaging
Shopping
| By sea | Cheapest but longest option 18~30 days by sea delivery, best for large quantity order. |
| By air | More expensive than sea delivery, But cheaper than express 5~7 days by air to airport. |
| By express | door to door service,the fastest and most expensive one, 3~6 days by express. |
| ||
Direct Factory
R&D team
Quality is our culture | Application
Certificate
| |
| ||
Our Advantages
- Various style for each products and completely series pneumatic products for you to choose from.
- Large stock for fast shipping.
- High quality with competitive price
- Sample order & small quantity order is ok
- Customize according to your special demand.
- Provide free products information.
- Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website( Go our website,please click here. ←_← ), or just contact with us directly. Thank you!
Julyr industrial
Cooperation Terms
- Sample terms: Sample fee is charged and will be refunded when order is placed.
- Sample time: 3-5 working days.
- Payment terms: Full payment in advance.
- Delivery Time: 3-5 weeks after sample confirmation.
Q: What products do you supply?
A: We supply metal cylinders, booster pumps, press machines, riveting machine, pressure gauge test rig, zinc alloy ingot and the other zinc alloy products etc.
Q: Can you guarantee quality for orders?
A: Sure. We can 100% guarantee quality for all of your orders, as what we want is a long-term business relationship with you, rather than one off business.
Q: Can I have my brand and put my logo on the products?
A: Of course. As long as you would like to, we could do that for you, according to your designs, free of charge.
Q: What's your delivery time?
A: That depends. It usually takes 15-30 days for different products and quantity.
